Engineered for modern simplicity, the 3000 traditional, two-panel slider integrates near-invisible screens, and premium upgrades for a door that quietly elevates any space.
Fleetwood’s aptly named Archetype hardware embodies our clientele’s commitment to luxury architectural principles. Our engineers design our proprietary hardware, not as an accessory, but as an integral element that ensures flawless functionality. Handcrafted in the USA from American-made, marine-grade stainless steel, each piece is electropolished for coastal endurance and backed by our Transferable Lifetime Warranty.
Timeless Finishes. Cleaner Living. With proper maintenance, our anodized finishes and factory-baked paints last a lifetime, reducing chemical waste from refinishing. We also use processes that eliminate Volatile Organic Compounds that some products emit into the air. This ensures the healthiest home and supports our planet's environment.

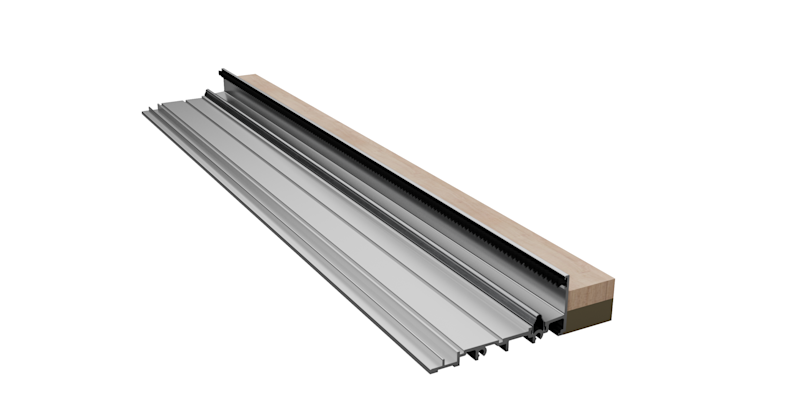

1 7/8" Sill

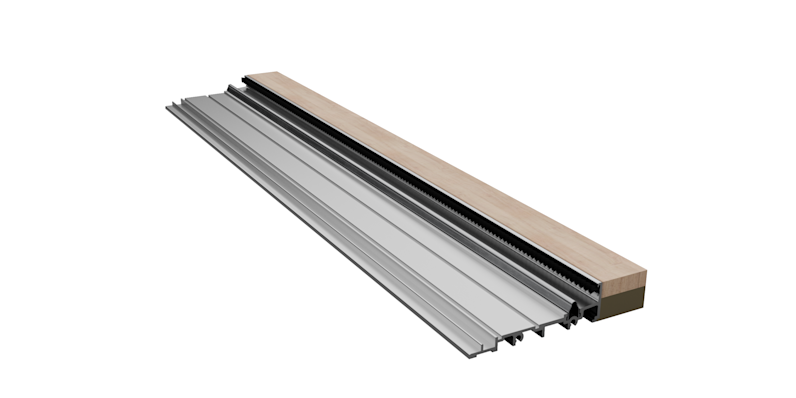

1 1/4" Sill (Limited Performance)

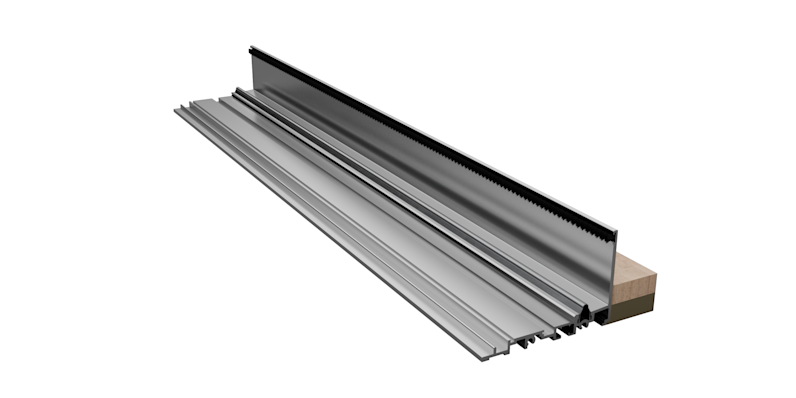

3" Sill (HVHZ2 Water)
High Efficiency Glass: Modern glazing from Fleetwood coupled with increasingly efficient insulation techniques allows a minimalist design with huge glass that does not compromise energy consumption.
Security Benefits: Fleetwood endeavors to make products better instead of cheaper, resulting in specialty products that other manufacturers should not attempt. High-security laminated glass (like your car windshield) coupled with robust Fleetwood framing can withstand severe impact.
Noise Control: Fleetwood chooses to offer a wide range of options instead of limiting features to increase profit and simplify production. Sound dampening upgrades to glass and products are available without affecting the budget or design.
Fire/Heat Resistance: Steel products are designed and rated to resist fire damage, but these products are limited in function and can be costly. While not rated, Fleetwood aluminum products offer great performance and style and actually help maintain wall integrity during a fire. Typical residential windows (wood or vinyl) add to the flame whereas extruded aluminum retains its form at over 1000 °F.
Fleetwood’s sliding door interlockers are among the slimmest on the market, and now available with a 1" narrow interlocker as an option. Methodical engineering and aluminum thickness allow slender lines without compromising structural integrity.
Standard Features | |
|---|---|
Finish | Stock Anodized Finish: Black (class 1) or Clear (class 1) |
Glass | 1″ Insulated Glass with Dark Bronze Spacer |
Frame | 6063 T-6 Extruded Aluminum 4-1/2″ Deep Nail-on Frame |
Hardware | Stainless Steel Assembly Screws 1-7/8″ Height Threshold with Stainless Steel Track Head Filler(s) Authentic Precision Bearing Stainless Steel Tandem Rollers (1-7/8″ Diameter) Equal Sized Glass Archetype Stainless Steel Hardware Actuator Height 46″ Adjustable Stainless Steel Strike Stainless Steel Dust Box Wrap Around Glazing Extruded Screen Door with UltraVue Mesh (Phifer.com) |
OPTIONAL FEATURES | |
Finish | Painted Finish: Kynar 70% Fluoropolymer Resin (50% for dark colors, ex. Black) Anodized Finish: class 1 Custom (Light Bronze & Medium Bronze) |
Glazing | 1/4″ & 9/16″ |
Frame | 4-1/2″ Deep Equal Leg (Block) Frame 1-1/4″ Height Threshold (Minimal Weather Performance) 3″ Height Threshold (High Weather Performance) Wide or Archetype Fixed Stile |
Hardware | Unequal Sized Glass (Flush Stack) High Performance Interlockers High Performance Meeting Stiles Side Lites (Field Mulled 3800-T) Transoms (Field Stacked 3800-T) Black Painted Archetype Hardware Archetype Actuator Only Archetype Lever Exterior or Interior Keyed Lock Actuator Height: 54″, 36″ & 24″ Steel Look SDL |
CONFIGURATIONS | OX, XO, OXO, OOX, XOO, OXXO, XOOX |
MAX. PANEL WIDTH & HEIGHT | |
Maximum Panel Width | 88" |
Maximum Frame Height | 168" |
(Max width & height are not necessarily available in combination) | |
Series 3000 Sliding Glass Door | U-Value | SHGC | ||
Description/ Code | Air | Argon | Argon & Warm Spacer | Air/ Argon |
Cardinal 366 6mm | - | .51 | - | /.23 |
Cardinal 366 i89 6mm | - | .47 | - | /.22 |
Cardinal 272 6mm | - | .52 | - | /.33 |
Guardian SN68 6mm | .55 | .52 | .51 | .31/.31 |
Guardian SNX62 6mm | .55 | .52 | .51 | .23/.22 |
Guardian SNX62/ IS20 6mm | - | - | .47 | .22 |
Simulated Performance Alternative Reports are available upon request.
Spacers
Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.
This door was designed for a luxury residence, which seldom requests sound test data. For comparative analysis only, we provide a Series 3000-T report.
AAMA/WDMA/NAMI/HVHZ/ASTM
All testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.
*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.
