ARCHE-DUCT® SYSTEM:

Luxury from the Ground up

A hallmark of luxury residential design is door sills or thresholds flush with the floor, creating a seamless transition between indoor and outdoor spaces. Achieving this look, however, requires effective and reliable water drainage at the sill. Fleetwood Windows & Doors proprietary, tested, and certified* Arche-Duct system provides effective water management in a floor-flush sill, even under hurricane force conditions.

Warning: This video contains flashing images that could trigger seizures for people with photo sensitivity.

Engineered Water Management

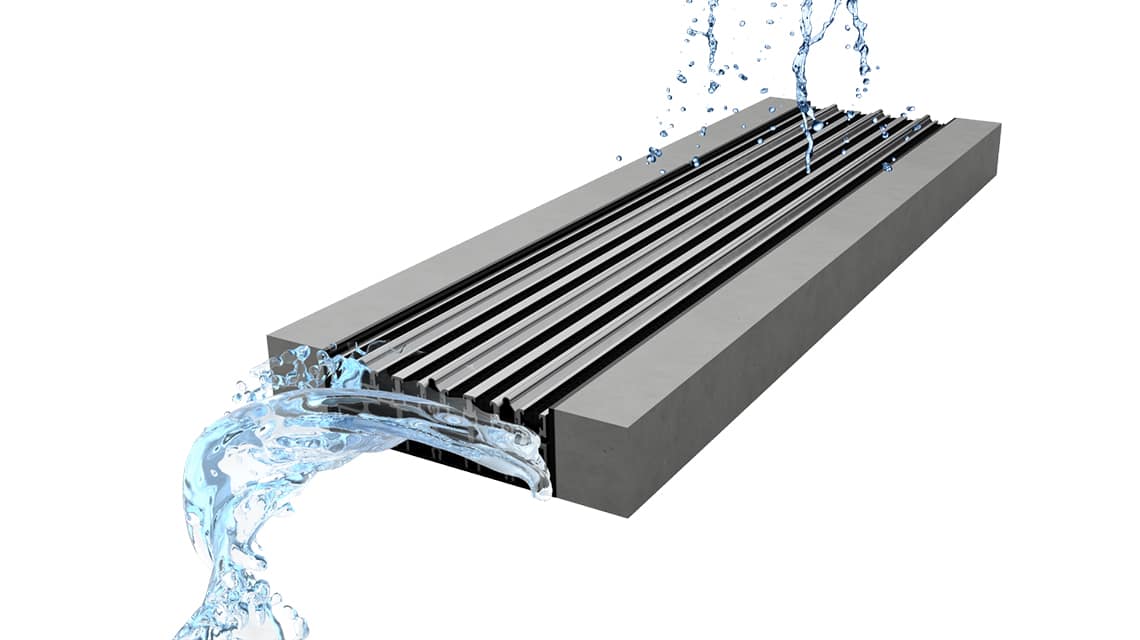

The Arche-Duct system functions as a contained drainage basin, actively managing water before it can reach interior finishes.

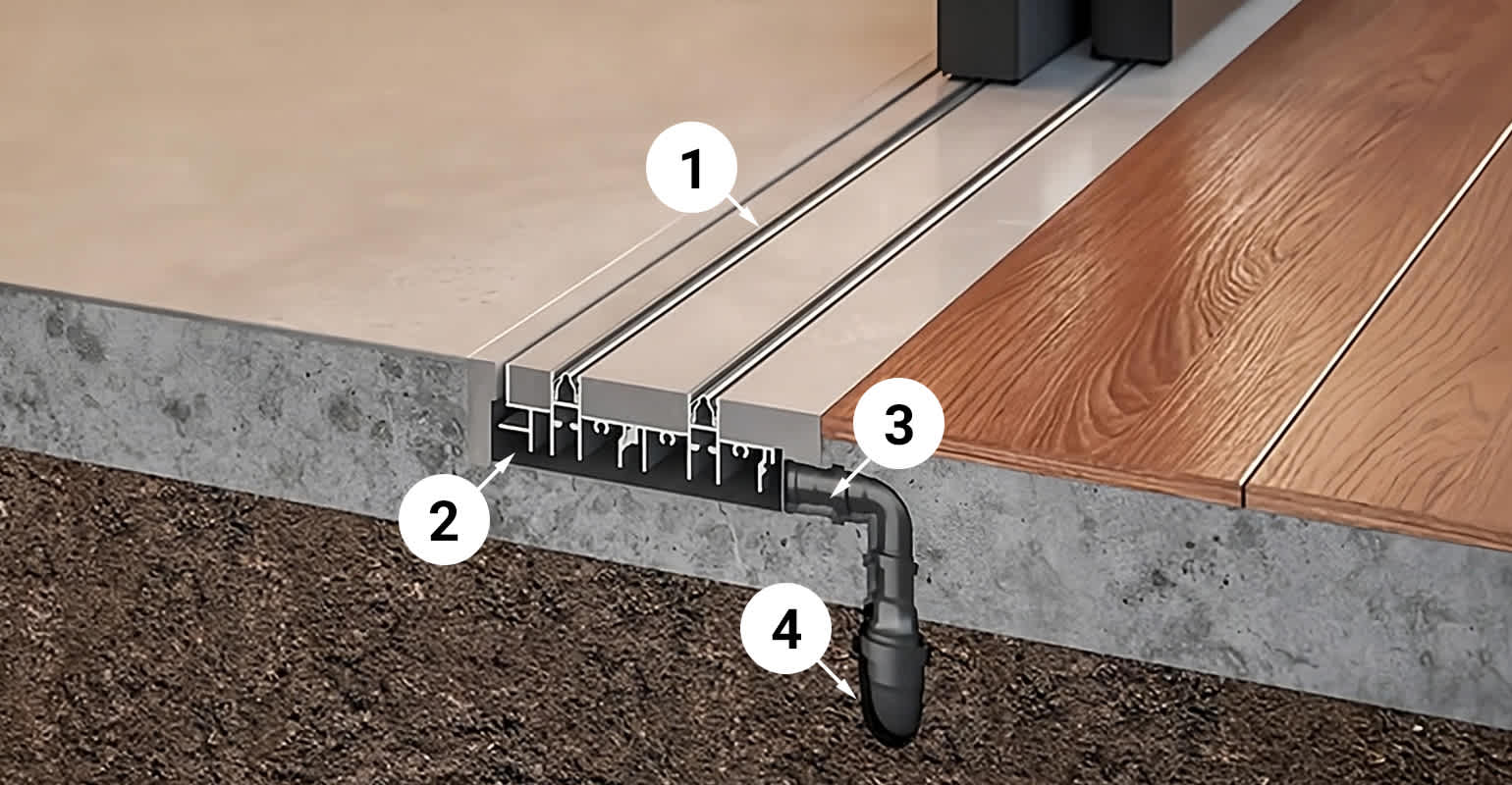

  1. A narrow slot captures surface water across the full width of the opening
  2. Water is directed into an integrated 2"-deep aluminum duct in the subfloor
  3. The duct connects to a drainage pipe below the floor
  4. Water is routed safely back to the exterior of the structure

Designed for Integration. Engineered for Performance.

Arche-Duct is available in two performance grades across Fleetwood’s product portfolio, including 3-series, Gen 4, and EDGE multi-slide, swing, and pivot doors.


Hidden/Minimal Drainage

Designed for most residential applications where water exposure is moderate and properly managed through architectural design.

  • Ideal for the majority of U.S. climates
  • Balances performance with minimal visual impact
  • Supports clean, narrow sightlines
  • Include: 3050, 4070-T, 3200-T, 3900-T, 3600-T, EDGE |s|, EDGE |p|, 4400-T, 4400 Wood


High Performance/HVHZ

Engineered for demanding environments, including coastal and hurricane-prone regions.

  • Wider sill profile with increased exposed track
  • Enhanced weatherstripping and water management capacity
  • Designed to handle high wind-driven rain conditions
  • Include: 3070-HI†, 3070-T†, 3070, 4070-T (Heavy Duty Option)


Tested & Certified

While other manufacturers offer similar concepts, those systems are often pieced together from third-party components. Instead, Arche-Duct offers distinct advantages.

  • Designed, engineered, and manufactured by Fleetwood as a complete system
  • Tested as part of the overall door and window wall assembly
  • Offered as a standard, off-the-shelf solution, not an aftermarket workaround
* Tested and Certified Arche-Duct systems include: 3070, 3070-T, 3070-HI, 3050, 4070-T, 4400-T, EDGE |s|, EDGE |p|, EDGE |f|. Arche-Duct systems that have not been formally certified but provide enhanced water management include 3600-T, 3200-T, 3900-T, and 4400 Wood.

Installation & Coordination

Arche-Duct is straightforward to install, but it is not a standalone component.*

Successful implementation requires coordination with:

  • Floor assembly design
  • Waterproofing strategy
  • Drainage routing (typically 1"–2" pipe connections)
  • Site grading and exterior water management


Instructions available:

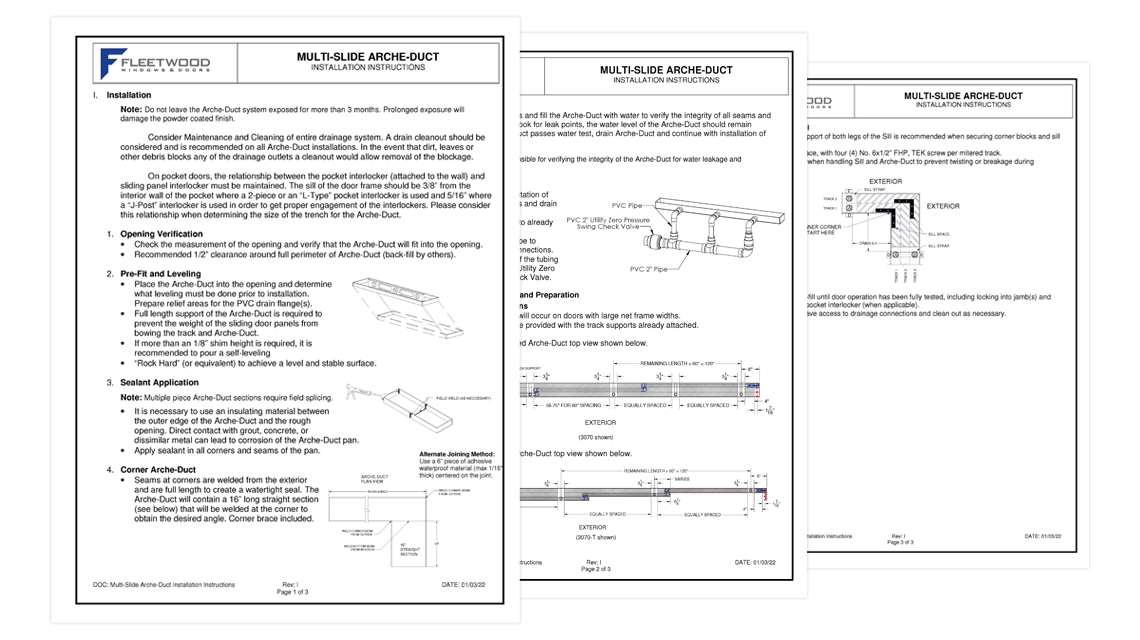

Multi-slide Arche-duct Installation Instructions PDF | 148.32 KB


*Fleetwood provides detailed installation guidance, including water testing procedures to verify system integrity prior to final installation.
