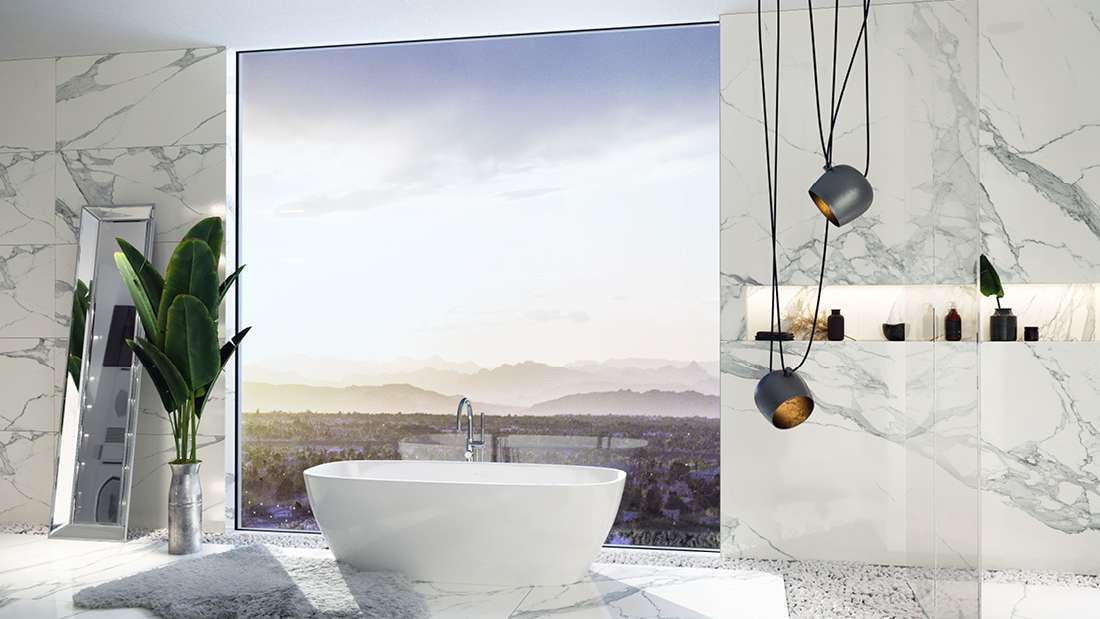

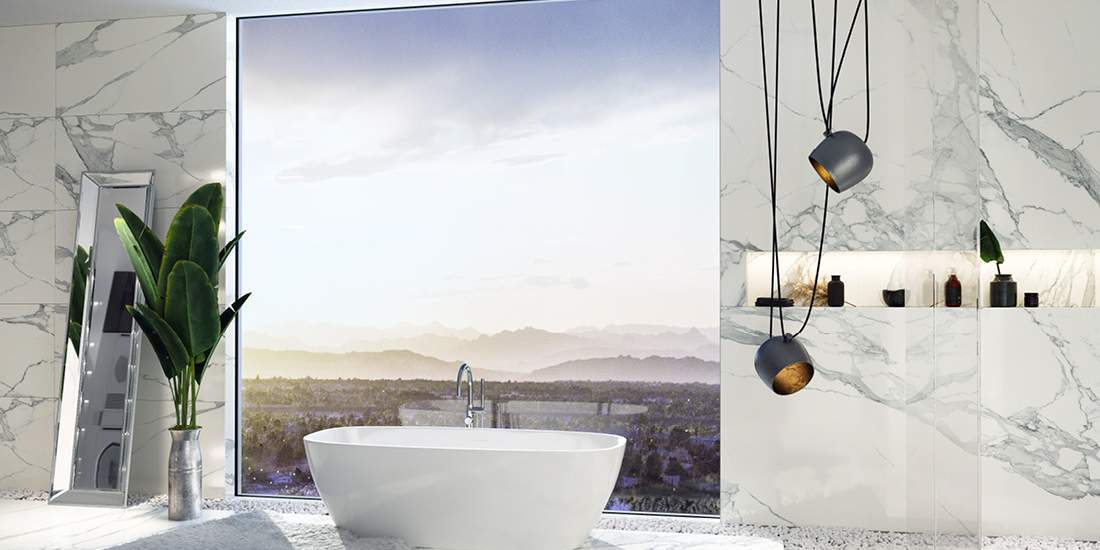

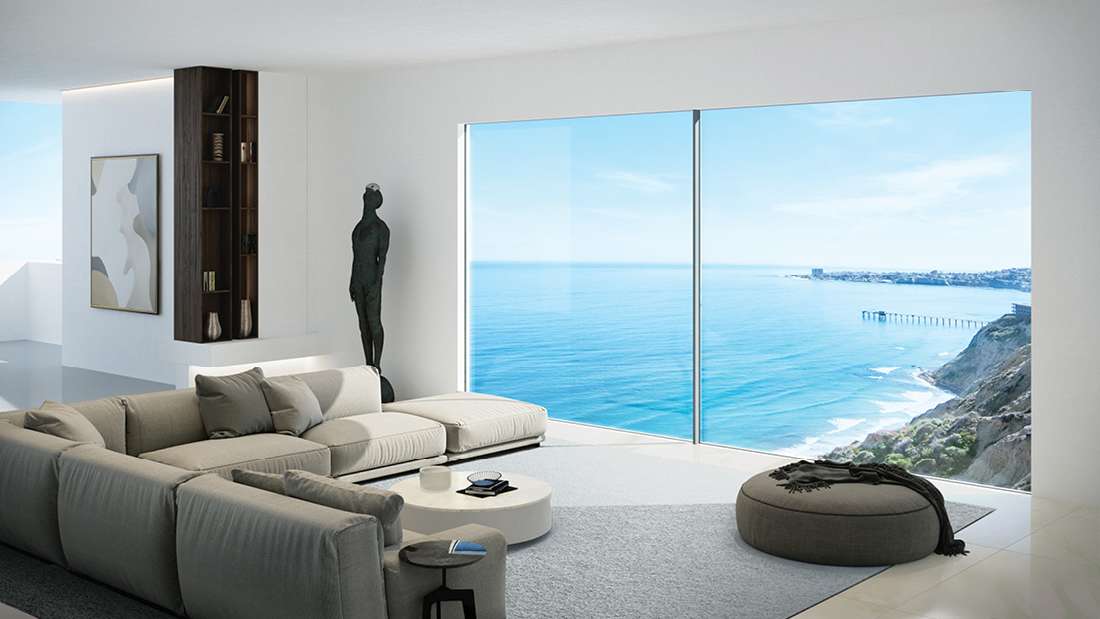

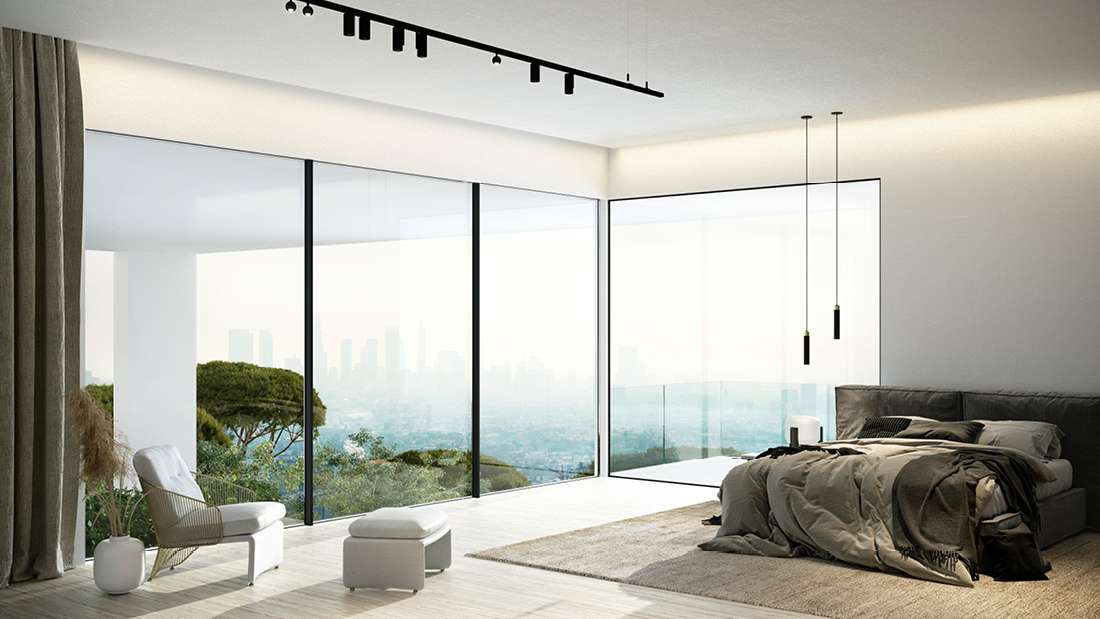

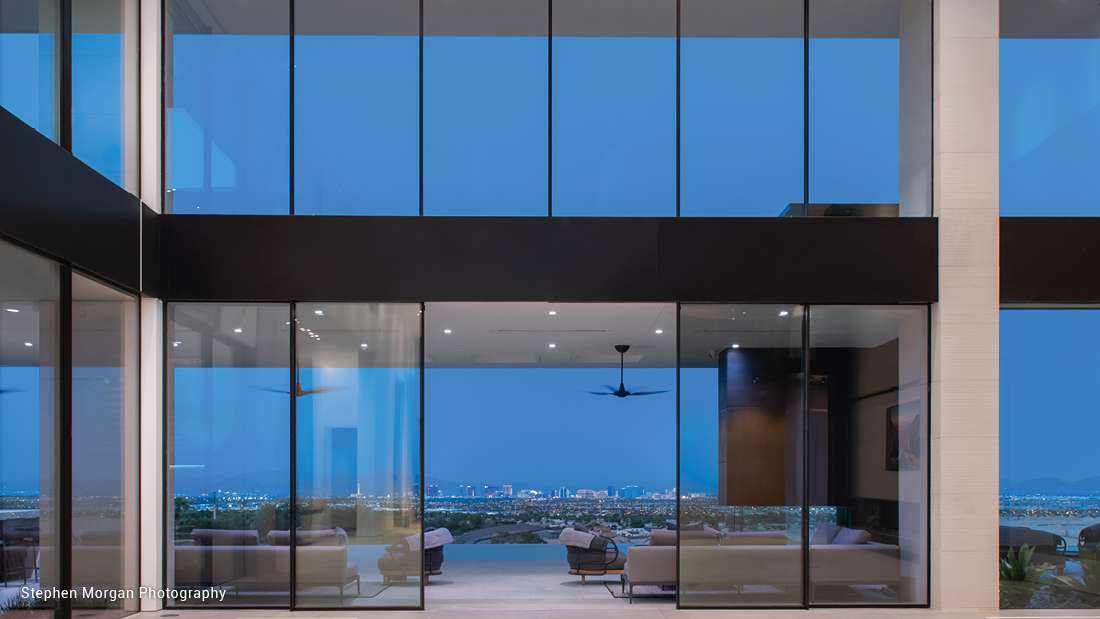

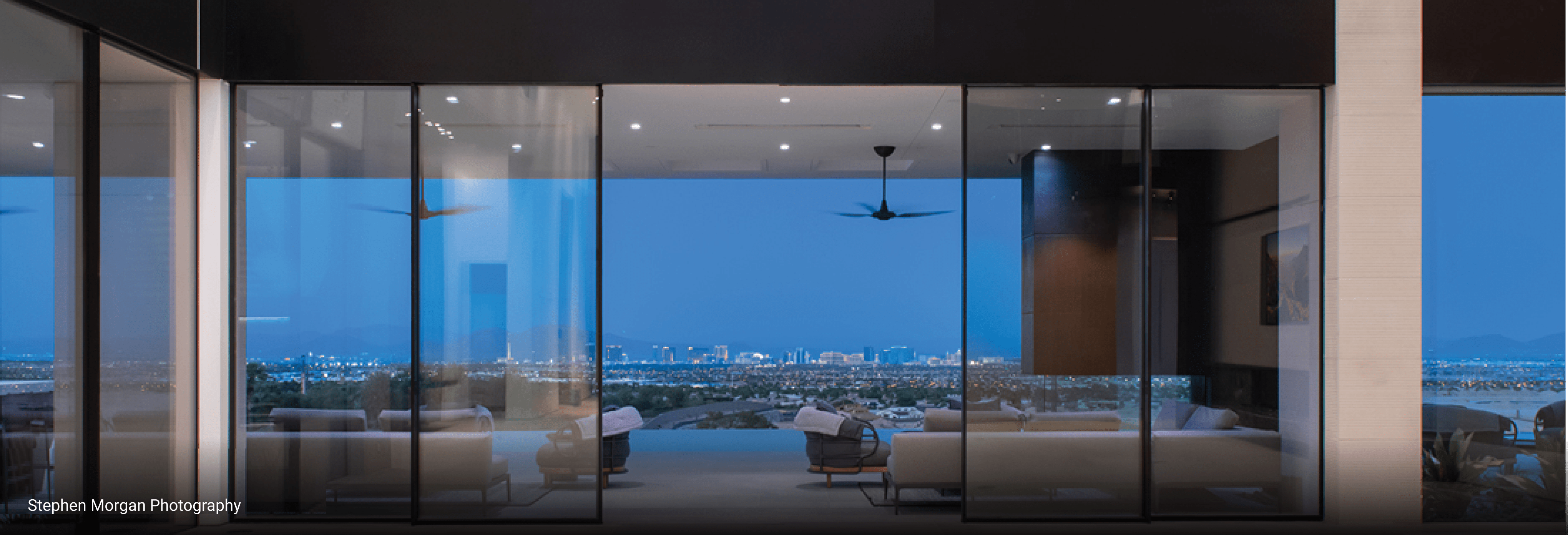

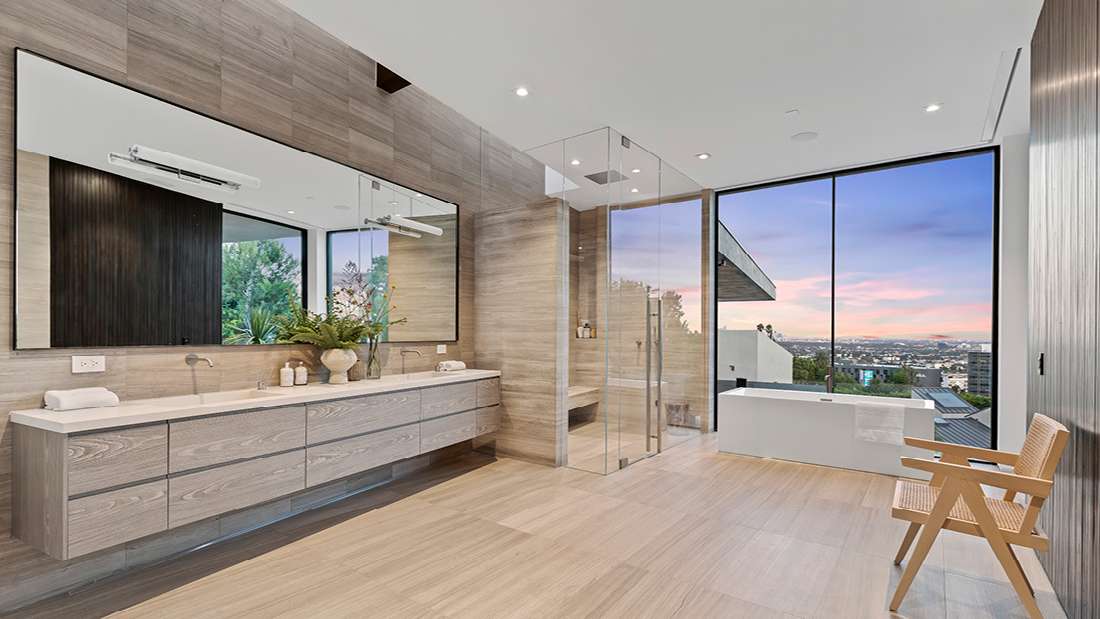

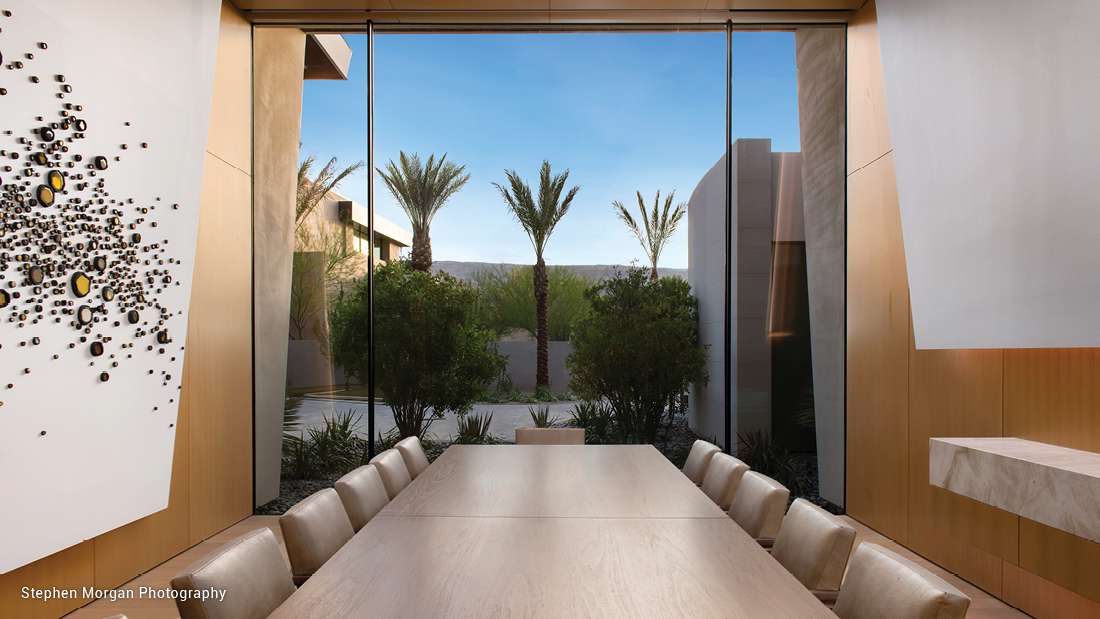

Invisible frames. Minimal presence. A design that lets the landscape take center stage.
Timeless Finishes. Cleaner Living. With proper maintenance, our anodized finishes and factory-baked paints last a lifetime, reducing chemical waste from refinishing. We also use processes that eliminate Volatile Organic Compounds that some products emit into the air. This ensures the healthiest home and supports our planet's environment.
Unlike typical buried systems, the |f| offers tested performance.
Labeled Thermal Performance:
Though framing is hidden, thermal conductivity is still an issue. Site-built systems ignore this reality but the |f| comes with thermal barriers and will be tested and NFRC labeled. For even better results, we offer Simulated Performance Alternative factors.
Breathing Wall:
Though buried, the |f| allows minute air particles to move inside the frame, preventing the build-up of condensation in the wall cavity.
Limiting Deflection:
The EDGE Fin is both a cosmetic and performance option. Most systems ignore deflection or require field reinforcing. The Fin has a 1” sightline and is the same depth as the EDGE |s|, making opposing wall installations consistent in appearance.
Water Performance:
With Fleetwood’s hidden Arche-Duct draining system (SFD-E), the EDGE easily handles high-rise water performance.
STANDARD FEATURES | |
|---|---|
Finish | Stock Clear Anodize (Class 1) & Stock Black Anodize (Class 1) |
Glass | 1.5″, 1.25″, or 9/16″ |
Sub Floor Draining | Arche-Duct |
OPTIONAL FEATURES | |
Finish | Painted Finish: Kynar 70% Fluoropolymer Resin (50% for dark colors, ex. Black) Anodized Finish: Class 1 Custom (Light Bronze & Medium Bronze) |
CONFIGURATIONS | Virtually Unlimited In-Line |
MAX. PANEL WIDTH & HEIGHT | Glass up to 150 square feet per lite |
Architectural Detail Drawings
Options Sheets
EDGE |f| Fixed Window | Dual Glazing | Triple Glazing | |||||||
U-Value* | SHGC No Dividers | U-Value* | SHGC No Dividers | ||||||
Description/ Code | Air | Argon | Argon/ Warm Spacer | Air/ Argon | Air | Argon | Argon/ Warm Spacer | Air/ Argon | |
Cardinal 366 6mm | - | .33 | - | /.27 | - | - | - | - | |
Cardinal 366/i89 6mm | .27 | - | .26 | - | - | - | - | ||
Cardinal 272 6mm | - | .33 | - | /.40 | - | - | - | - | |
Cardinal 272/i89 6mm | .28 | - | .39 | - | - | - | - | ||
Guardian SN68 6mm | .39 | .35 | .33 | .37/.37 | .27 | .23 | - | - | |
Guardian SNX62 6mm | .38 | .34 | .33 | .27/.26 | .26 | .22 | - | .23/.22 | |
Guardian SNX62/IS20 6mm | - | - | .28 | .25 | - | - | .19 | .19 | |
Simulated Performance Alternative Reports are available upon request.
Spacers
Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.
This window was designed for a luxury residence, which seldom requests sound test data. For comparative analysis only, we provide a Series 3800-T report.
AAMA/WDMA/NAMI/HVHZ/ASTMAll testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.
*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.
Current Test Reports:
The EDGE |f| is a highly engineered product. Fleetwood encourages only trained professionals perform the installation.
