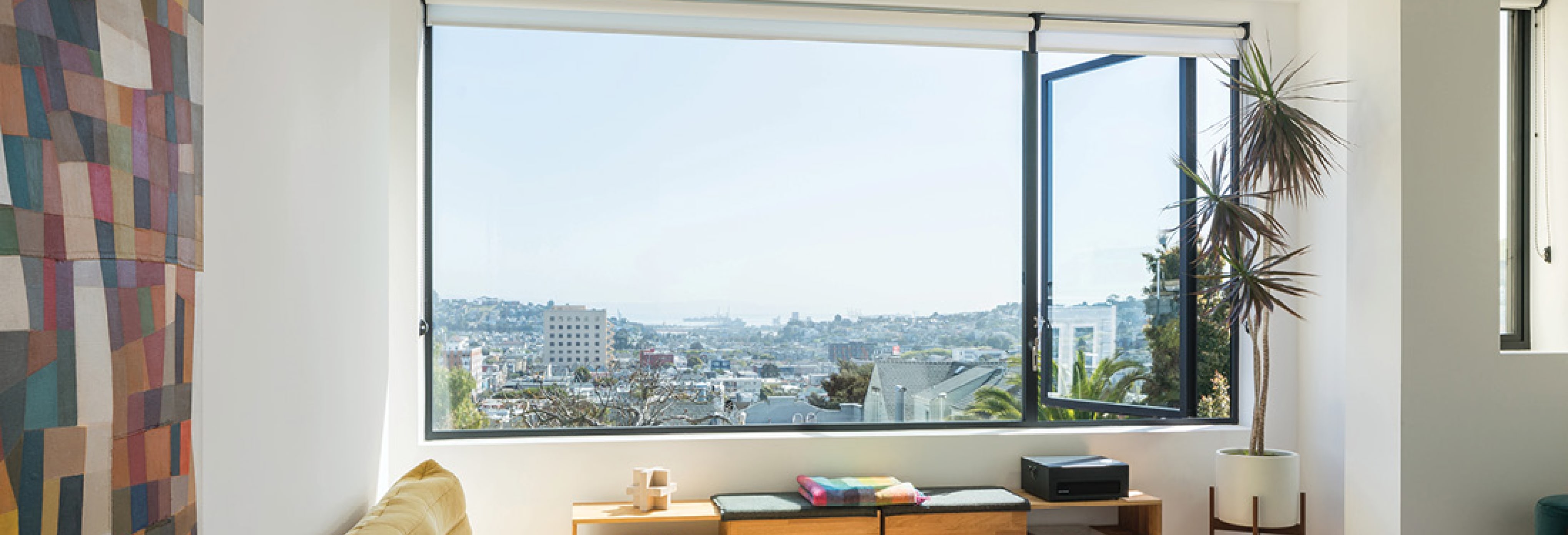

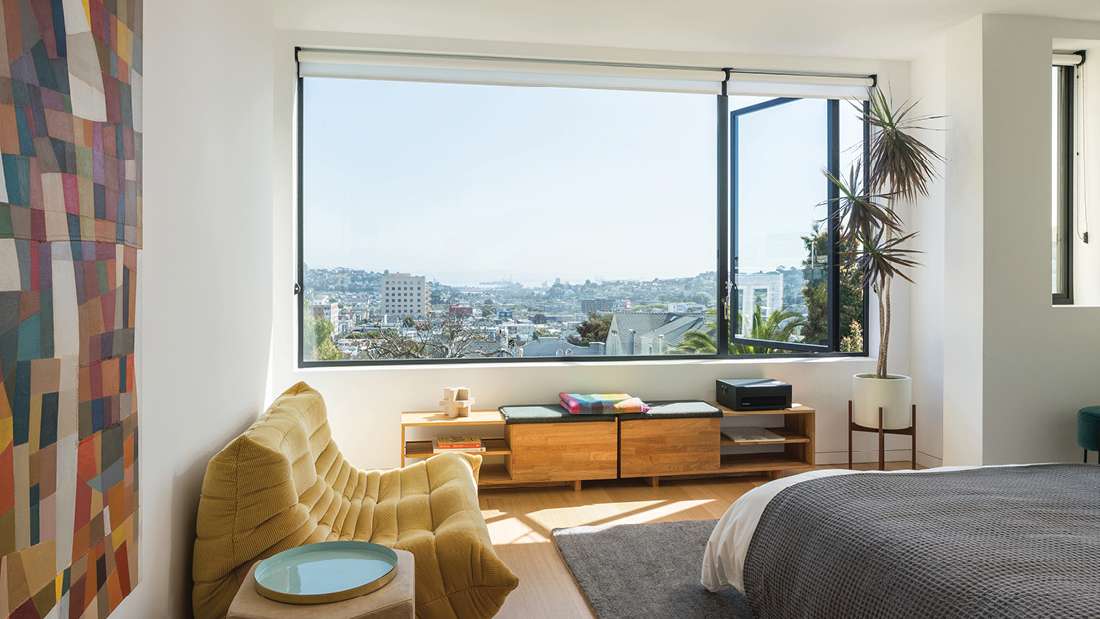

With sophisticated elements and designer screens, this window system balances luxury style with fit and function.
Our proprietary Archetype hardware collection was named for Fleetwood’s peerless commitment to architectural integrity. Rather than adapt off-the-shelf hardware, Fleetwood crafts custom components for effortless operation. Each piece is precision-built in the USA from marine-grade stainless steel and electropolished for coastal durability. Every component is backed by our Transferable Lifetime Warranty.
Archetype Cam Handle
Cast zinc (plated finish)
Cast zinc (plated finish)
4-Bar Hinges | Cast zinc (plated finish) | Limited vent travel
4-Bar Hinges
Hopper Ring Pole
4-Bar Hinge
All screens come with UltraVue®, nearly invisible mesh, by Phifer®
All screens come with UltraVue®, nearly invisible mesh, by Phifer®
Timeless Finishes. Cleaner Living. With proper maintenance, our anodized finishes and factory-baked paints last a lifetime, reducing chemical waste from refinishing. We also use processes that eliminate Volatile Organic Compounds that some products emit into the air. This ensures the healthiest home and supports our planet's environment.
High Efficiency Glass: Modern glazing from Fleetwood coupled with increasingly efficient insulation techniques allows a minimalist design with huge glass that does not compromise energy consumption.
Thermal Break Technology: Fleetwood products with a “T” in the series number are manufactured with thermally broken aluminum for condensation control and energy efficiency. For over 30 years, Fleetwood has designed products around this now sweeping practice and does so with extensive testing and engineering so the product maintains the look for the ultimate minimalist.
Security Benefits: Fleetwood endeavors to make products better instead of cheaper, resulting in specialty products that other manufacturers should not attempt. High-security laminated glass (like your car windshield) coupled with robust Fleetwood framing can withstand severe impact.
Noise Control: Fleetwood chooses to offer a wide range of options instead of limiting features to increase profit and simplify production. Sound dampening upgrades to glass and products are available without affecting the budget or design.
Standard Features | |
|---|---|
Finish | Stock Anodized Finish: Black (class 1) or Clear (class 1) |
Glass | 1″ Insulated Glass with Dark Bronze Spacer |
Thermal Barrier | Poured & De-bridged Thermal Barrier Strut Thermal Barrier (Interlockers & Perimeter Frame) |
Frame | 6063 T-6 Extruded Aluminum |
Hardware | 2-1/4″ Deep Nail-on Frame Stainless Steel Assembly Screws Welded Corners & Bolster Key 1/2″ Height Aluminum Sill Pan |

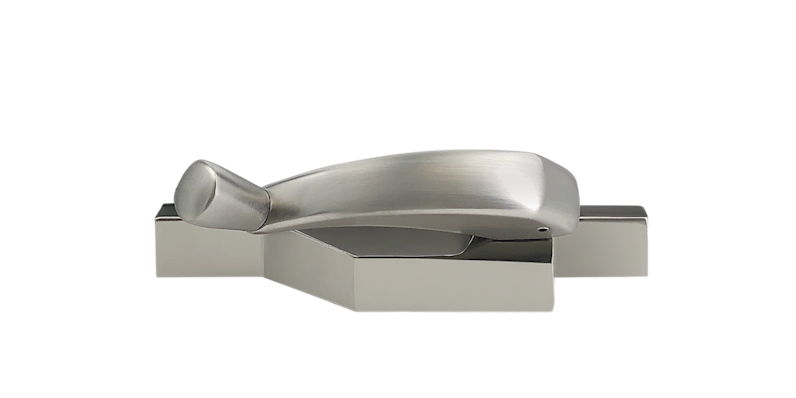

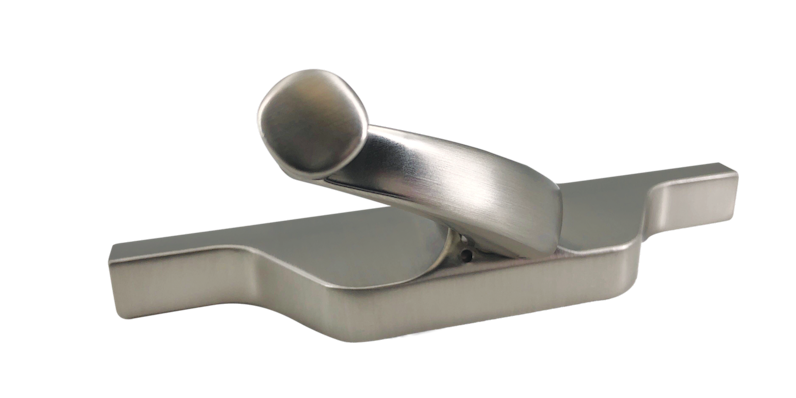

Accessories | Brushed Nickel Roto Gear Hardware & Folding Handle (Casement & Awning) Steel Single-Arm / Gear Stainless Steel Concealed Hinges (Awning & Hopper) 4-Bar Hinges & Ring Cam Handle (Hopper) Stainless Steel Butt Hinges (Casement) |
Additional Information | Equal Sized Glass Exterior Snap-in Glazing (Square Profile Stop) Extruded Screen Frame with UltraVue Mesh (Phifer.com) |
OPTIONAL FEATURES | |
Hardware | 2-1/4″ Deep Equal Leg (Block) Frame 2-1/4″ Deep Unequal Leg (Block) Frame Unequal Size Glass (TDL Alignment) Steel Look SDL |
Accessories | Truth Stainless Steel Arm / Gear (For Roto Gear Hardware) (Casement & Awning) Knob Handle (For Roto Gear Hardware) (Casement & Awning) 4-Bar Hinges & Cam Handle (Casement & Awning) Cam Handle or Spring Latch (Hopper) Black Painted Hardware Finish |
CONFIGURATIONS | C, CC, C/C, COC, A, AA, A/A, AOA, H, HH, O-GTF |
MAX. PANEL WIDTH & HEIGHT | |
Maximum Panel Square Footage | 24 ft2 |
Dual Glazing | Triple Glazing | |||||||
Series 350-T Awning | U-Value | SHGC No Dividers | U-Value | SHGC No Dividers | ||||
Description/ Code | Air | Argon | Argon & Warm Spacer | Air/ Argon | Air | Argon | Air/ Argon | |
Cardinal 366 6mm | - | .48 | - | /.19 | - | - | - | |
Cardinal 366/ i89 6mm | .46 | .44 | - | .19/.19 | - | - | - | |
Cardinal 272 6mm | - | .48 | - | /.28 | - | - | - | |
Cardinal 272/ i89 6mm | - | .45 | - | /.27 | - | - | - | |
Guardian SN68 6mm | .53 | .50 | .49 | .26/.26 | .46 | .43 | .21/.19 | |
Guardian SNX62 6mm | .52 | .50 | .48 | .19/.19 | .45 | .43 | .17/.15 | |
Guardian SNX62/ IS20 6mm | - | - | .45 | /.18 | - | .40 | /.12 | |
Dual Glazing | Triple Glazing | |||||||
Series 350-T Casement (OG) | U-Value | SHGC No Dividers | U-Value | SHGC No Dividers | ||||
Description/ Code | Air | Argon | Argon & Warm Spacer | Air/ Argon | Air | Argon | Air/ Argon | |
Cardinal 366 6mm | - | .48 | - | /.19 | - | - | - | |
Cardinal 366/ i89 6mm | .46 | .44 | - | .19/.19 | - | - | - | |
Cardinal 272 6mm | - | .49 | - | /.28 | - | - | - | |
Cardinal 272/ i89 6mm | - | .45 | - | /.27 | - | - | - | |
Guardian SN68 6mm | .53 | .50 | .49 | .26/.26 | .46 | .43 | .22/.22 | |
Guardian SNX62 6mm | .53 | .50 | .49 | .19/.19 | .46 | .43 | .17/.16 | |
Guardian SNX62/ IS20 6mm | - | - | .45 | /.18 | - | .42 | /.16 | |
Dual Glazing | Triple Glazing | |||||||
Series 350-T Hopper | U-Value | SHGC No Dividers | U-Value | SHGC No Dividers | ||||
Description/ Code | Air | Argon | Argon & Warm Spacer | Air/ Argon | Air | Argon | Air/ Argon | |
Cardinal 366 6mm | - | .49 | - | /.20 | - | - | - | |
Cardinal 366/ i89 6mm | .49 | .47 | - | .19/.19 | - | - | - | |
Cardinal 272 6mm | - | .50 | - | /.28 | - | - | - | |
Cardinal 272/ i89 6mm | - | .47 | - | /.27 | - | - | - | |
Guardian SN68 6mm | .55 | .25 | .50 | .26/.26 | .46 | .43 | .23/.23 | |
Guardian SNX62 6mm | .54 | .51 | .50 | .19/.19 | .46 | .43 | .17/.17 | |
Guardian SNX62/ IS20 6mm | - | - | .47 | /.18 | - | .40 | /.15 | |
Dual Glazing | Triple Glazing | |||||||
Series 350-T Fixed | U-Value | SHGC No Dividers | U-Value | SHGC No Dividers | ||||
Description/ Code | Air | Argon | Argon & Warm Spacer | Air/ Argon | Air | Argon | Air/ Argon | |
Cardinal 366 6mm | - | .34 | - | /.24 | - | - | - | |
Cardinal 366/ i89 6mm | .32 | .29 | - | .24/.23 | - | - | - | |
Cardinal 272 6mm | - | .35 | - | /.35 | - | - | - | |
Cardinal 272/ i89 6mm | - | .30 | - | /.34 | - | - | - | |
Guardian SN68 6mm | .40 | .36 | .35 | .33/.33 | .30 | .27 | .28/.28 | |
Guardian SNX62 6mm | .38 | .35 | .34 | .24/.23 | .30 | .26 | .20/.20 | |
Guardian SNX62/ IS20 6mm | - | - | .30 | /.22 | - | .24 | /.15 | |
Simulated Performance Alternative Reports are available upon request.
Spacers
Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.
AAMA/WDMA/NAMI/HVHZ/ASTM
All testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.
*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.
Current Test Reports:
