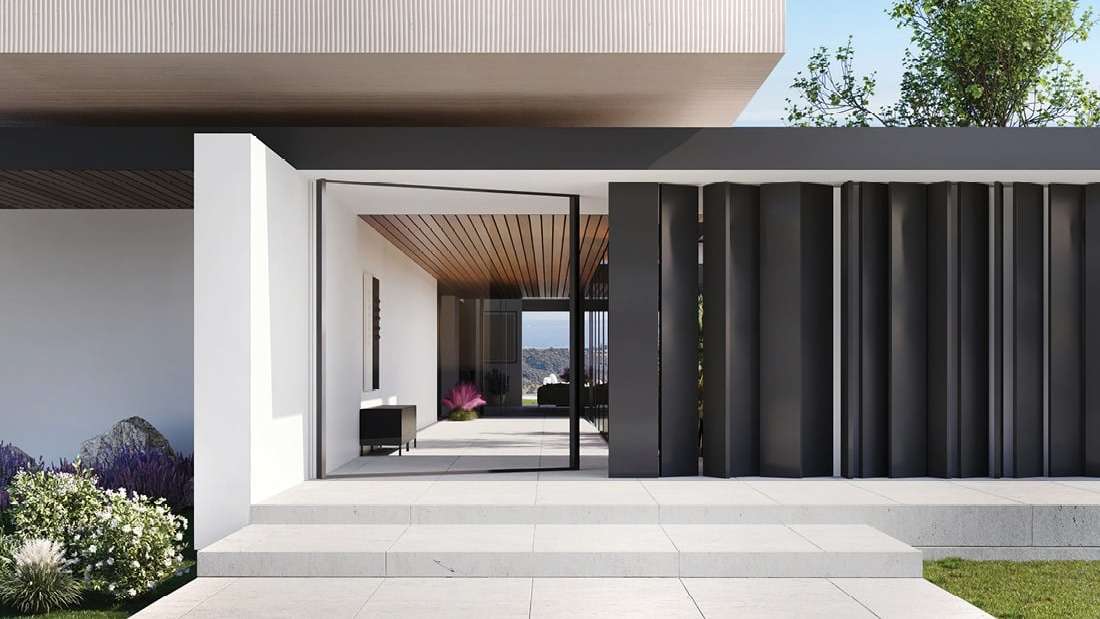

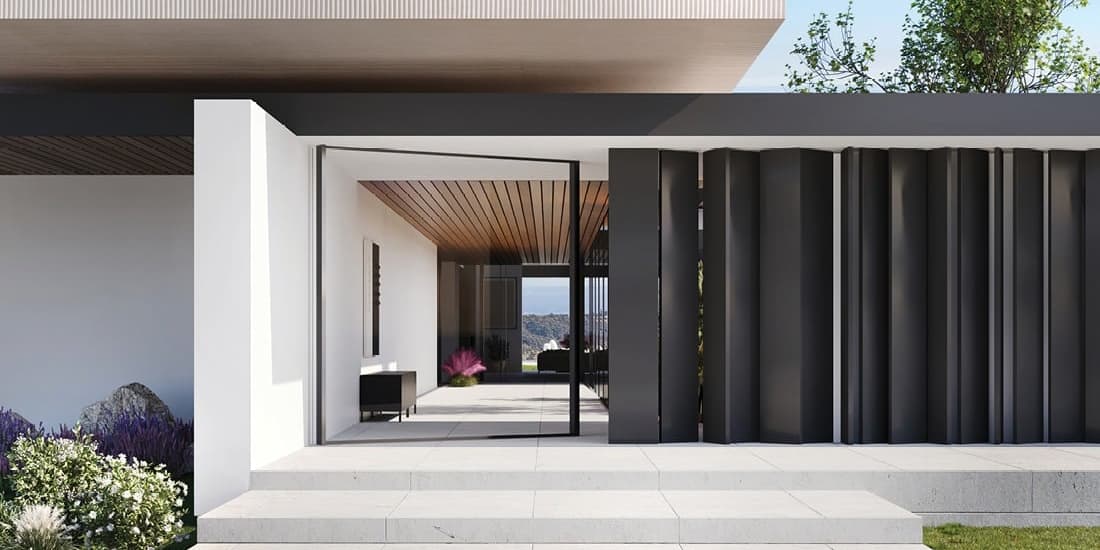

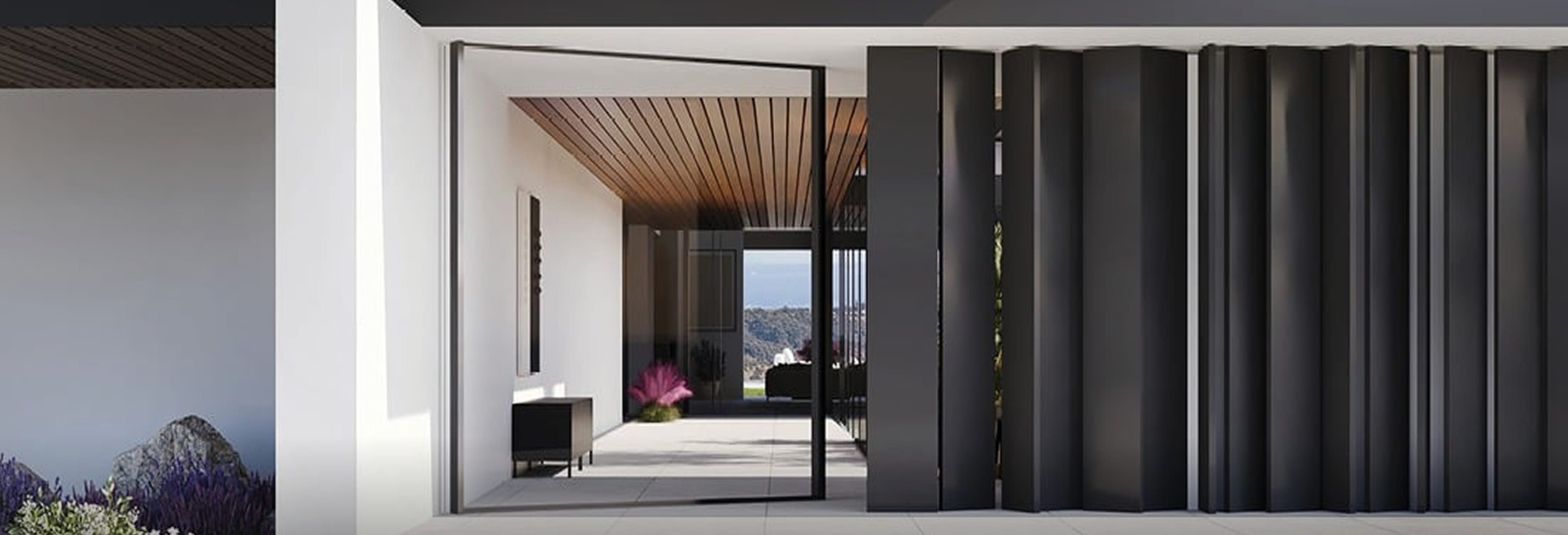

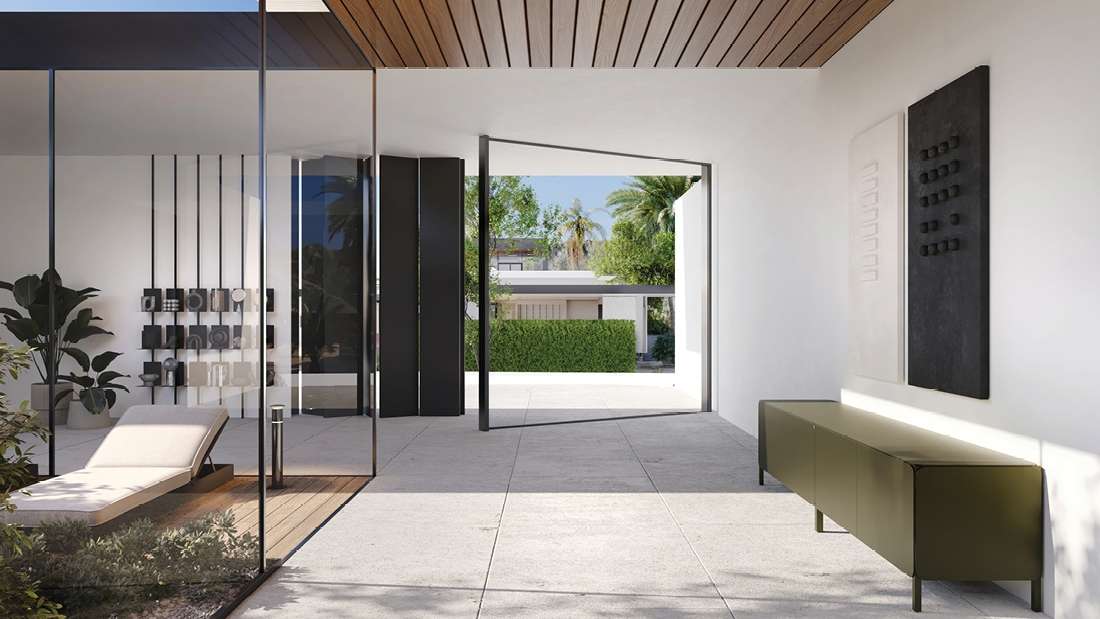

Barely there, yet powerfully present. Fleetwood’s EDGE |p| pivot door combines effortless touch operation, discreet design, and modern smart home technology.
Fleetwood’s aptly named Archetype hardware embodies our clientele’s commitment to luxury architectural principles. Our engineers design our proprietary hardware, not as an accessory, but as an integral element that ensures flawless functionality. Handcrafted in the USA from American-made, marine-grade stainless steel, each piece is electropolished for coastal endurance and backed by our Transferable Lifetime warranty.
Rixson Floor Closer

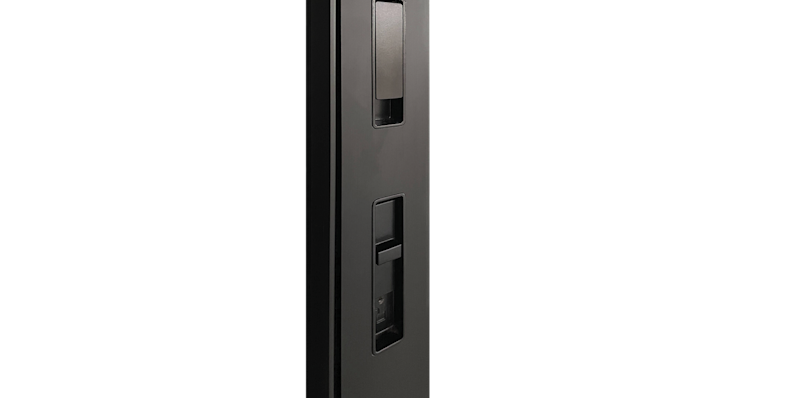

Archetype Blade Actuator and Fin Pull
Archetype Blade Case

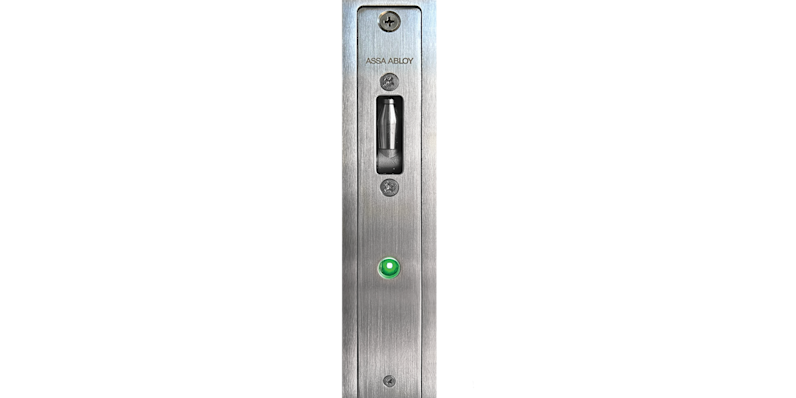

Electronic V-Lock
Timeless Finishes. Cleaner Living. With proper maintenance, our anodized finishes and factory-baked paints last a lifetime, reducing chemical waste from refinishing. We also use processes that eliminate Volatile Organic Compounds that some products emit into the air. This ensures the healthiest home and supports our planet's environment.
Energy Rated
The EDGE |p| is NFRC certified and boasts some of the lowest U-Factors of any pivot door in North America (see “Energy Results”).
Reduced Air/Insect Infiltration
Most pivot doors bleed air around the entire panel, but EDGE |p| comes standard with tactfully located weather barriers and engineered stops that prevent most air infiltration and annoying insect entrances.
Glazing Options
Fleetwood offers the EDGE |p| with hundreds of glass choices, depending on the needs of the client. Whether the needs are security, increased visible light, energy, sound control, or tinting, clients can choose from 9/16” or 1 ¼” thicknesses in monolithic, insulated, and laminated glass types.
Multi-Point Electronic V-Locks
Fleetwood engineers integrated electronic V-Locks that automatically secure the door at multiple points around the frame when closed. These robust steel bolts tightly secure the panel within the opening.
Standard Features | |
|---|---|
Finish | Stock Anodized Finish: Black (Class 1) or Clear (Class 1) |
Glass | 1-1/4" Insulated Glass with Dark Bronze Spacer |
6063 T-6 Extruded Aluminium | |
Thermal Barrier | Poured & De-bridged |
Block Frame | 2-1/2" Deep |
Swing Type | Interior |
Hardware | Archetype Head Pivot Archetype Blade Hardware Electronic V-Lock Hardware |
Sub-Floor Draining | Arche-Duct |
Minimum Pivot Distance | 7" |
Floor Closer | Rixson, 90o or 105o Hold Open |
OPTIONAL FEATURES | |
Finish | Painted Finish: Kynar 70% Fluoropolymer Resin (50% for dark colors, ex. Black) Anodized Finish: Class 1 Custom (Light Bronze & Medium Bronze) |
Swing Type | Rixson Pivot Only (Prep for Automation) |
Hardware | Additional V-Locks for Security and/or Performance Discreet Interior and Exterior Pulls Custom Pivot Locations Simulated Divided Lites (SDLs) |
CONFIGURATIONS | H |
MAX. PANEL WIDTH & HEIGHT | |
Maximum Panel Weight | 1000 lbs. |
Maximum Panel Width | 160" |
Maximum Frame Height | 180" |
(Max width & height are not necessarily available in combination) | |
Revit families
EDGE |p| Pivot Door | U-Value | SHGC | ||
Description/ Code | Air | Argon | Argon & Warm Spacer | No Dividers |
Cardinal 366 | - | .35 | - | .26 |
Cardinal 366/ i89 | .33 | .30 | - | .25 |
Cardinal 272 | - | .36 | - | .37 |
Cardinal 272/ i89 | .33 | .31 | - | .36 |
Guardian SN68 | .42 | .39 | .36 | .35 |
Guardian SNX62 | .42 | .38 | .35 | .25 |
Guardian SNX62/ IS20 | - | - | .30 | .24 |
Guardian SN68 3/8" | .40 | .37 | .35 | .35 |
Guardian SNX62 3/8" | .40 | .36 | .34 | .25 |
Guardian SNX62/ IS20 3/8" | - | - | .30 | .24 |
Simulated Performance Alternative Reports are available upon request.
Spacers
Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.
This door was designed for a luxury residence, which seldom requests sound test data. For comparative analysis only, we provide a Series 3200-T report.
AAMA/WDMA/NAMI/HVHZ/ASTM
All testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.
*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.
Current Test Reports:
