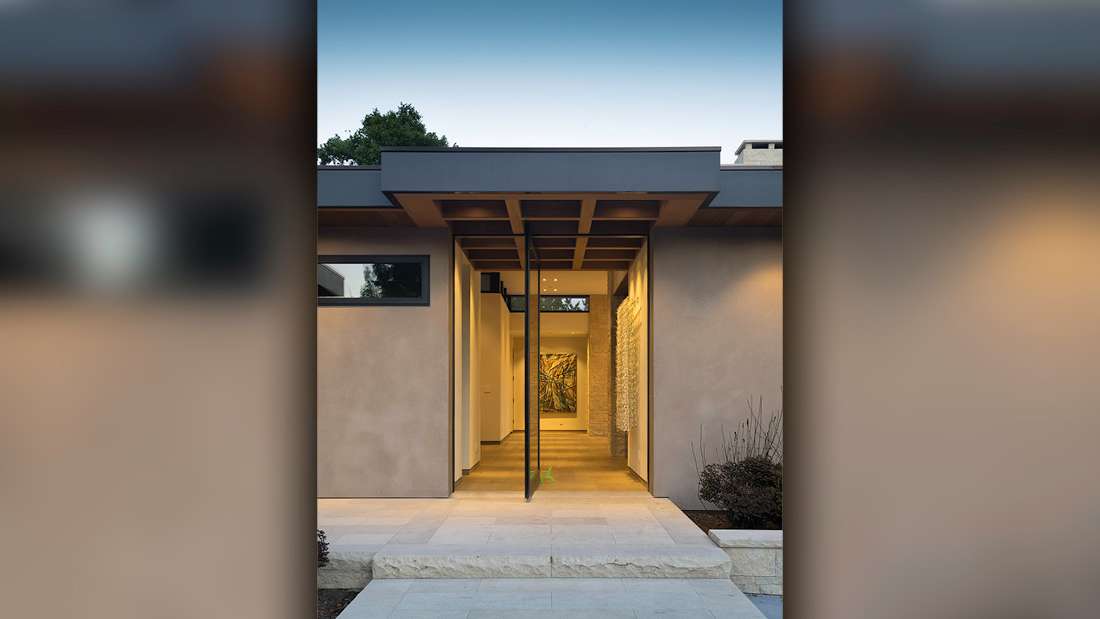

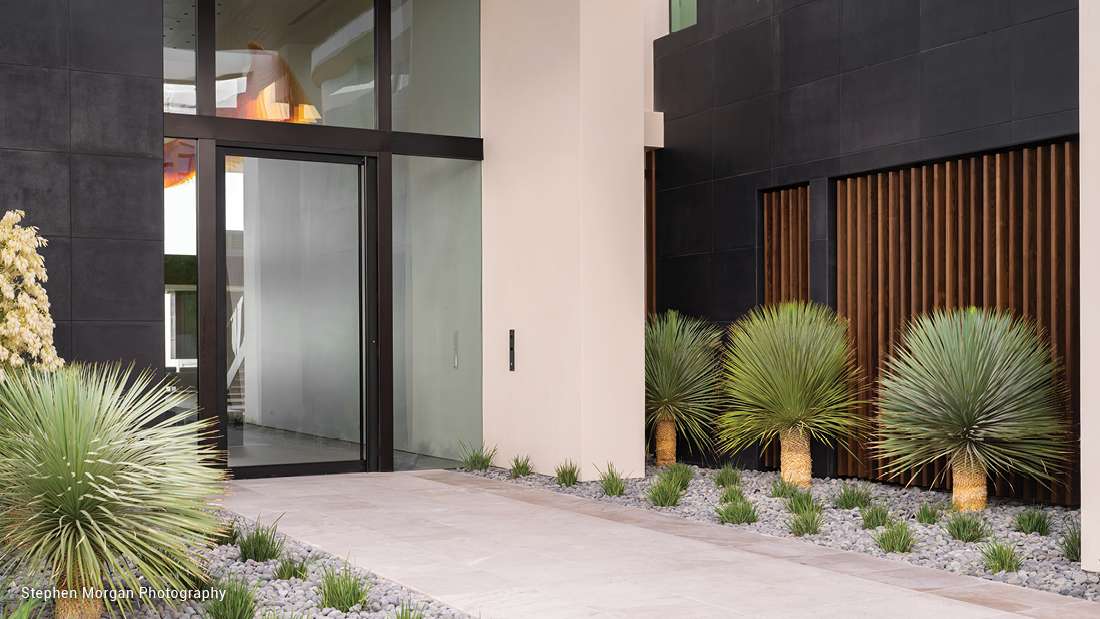

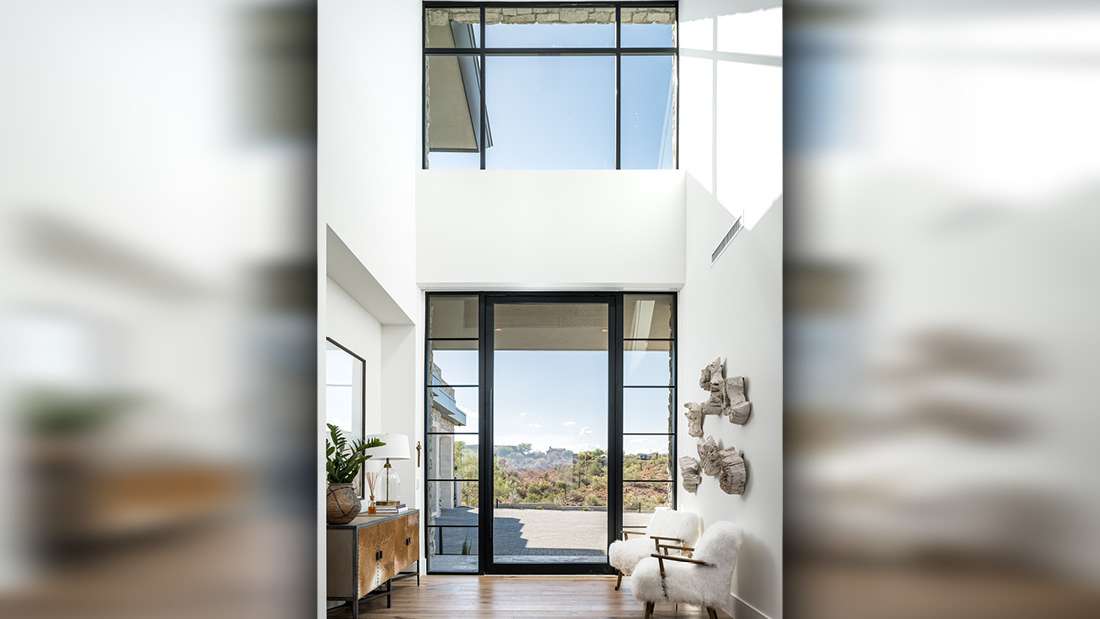

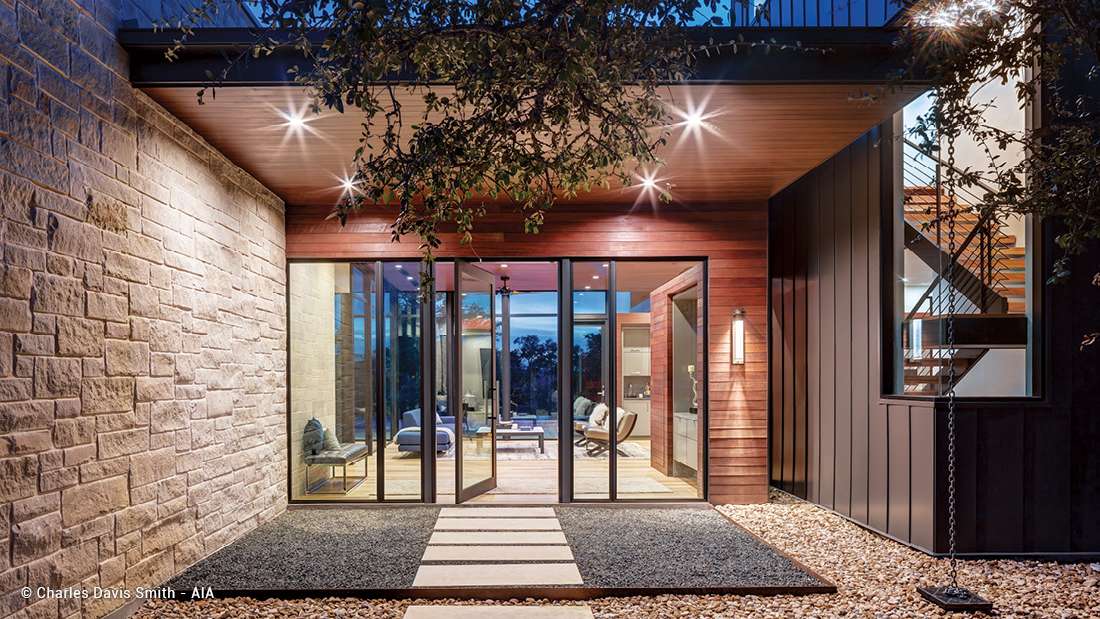

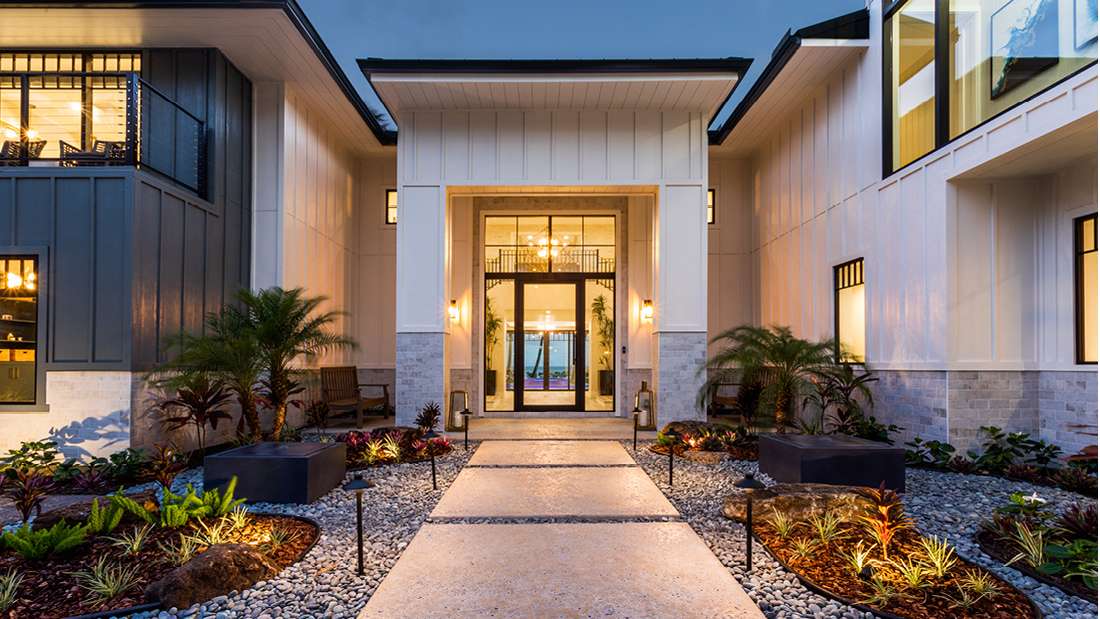

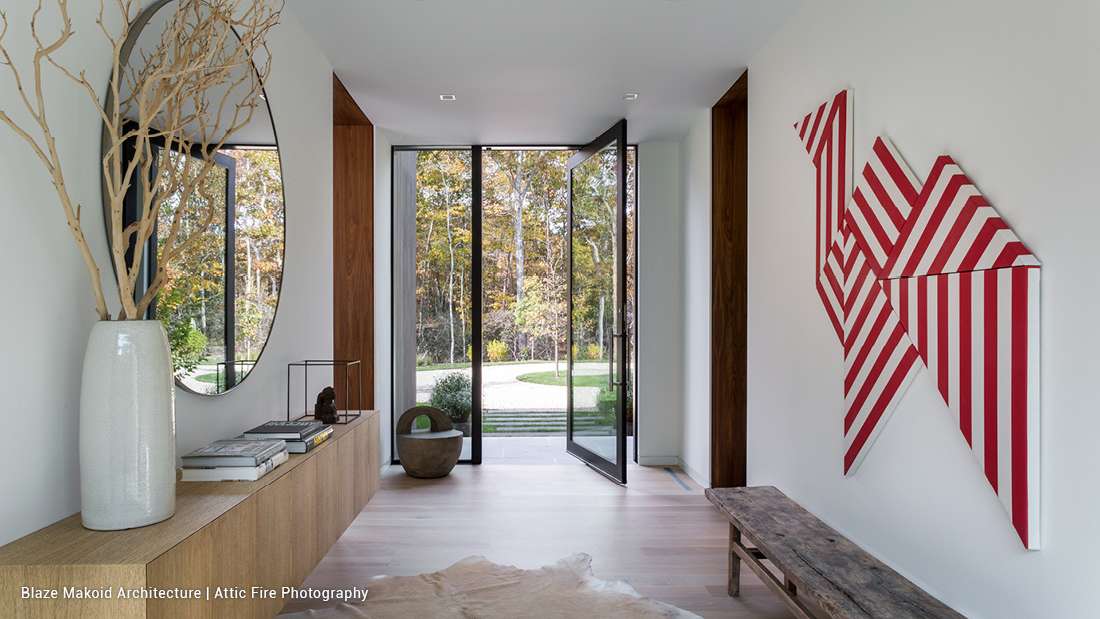

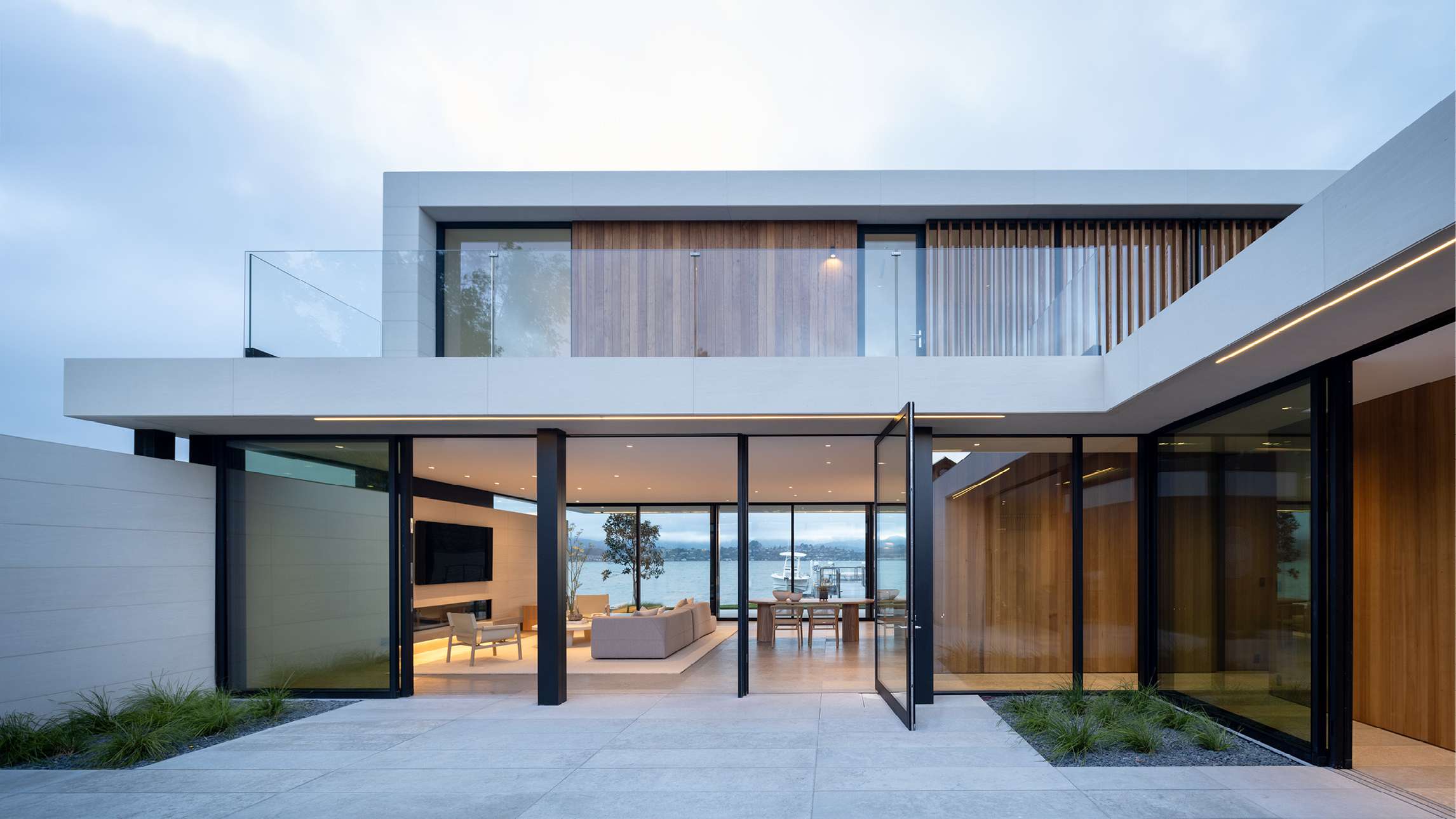

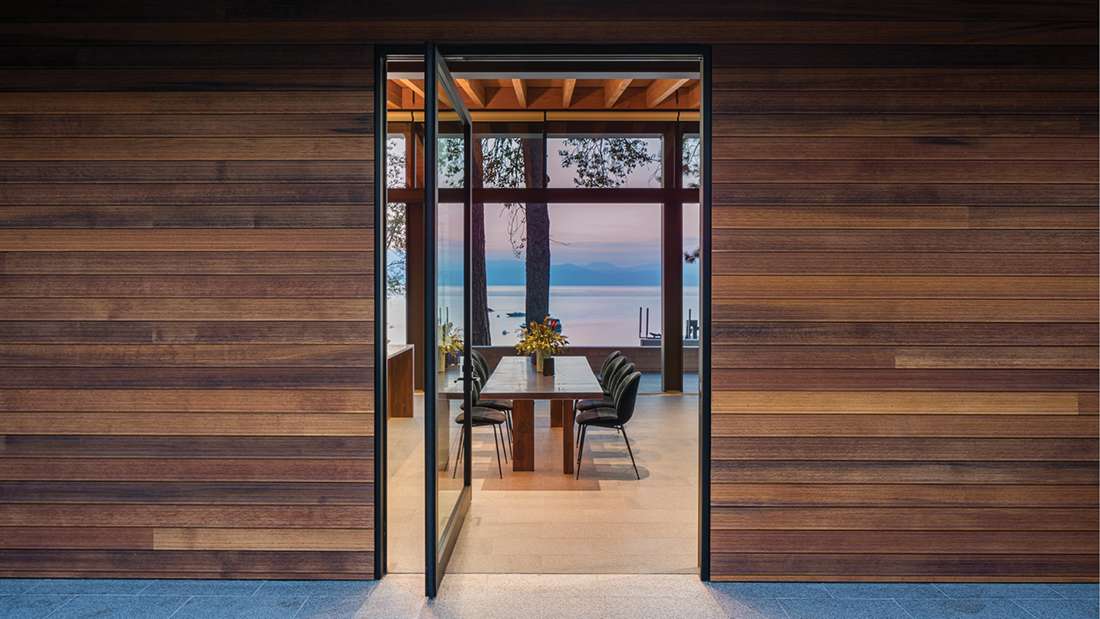

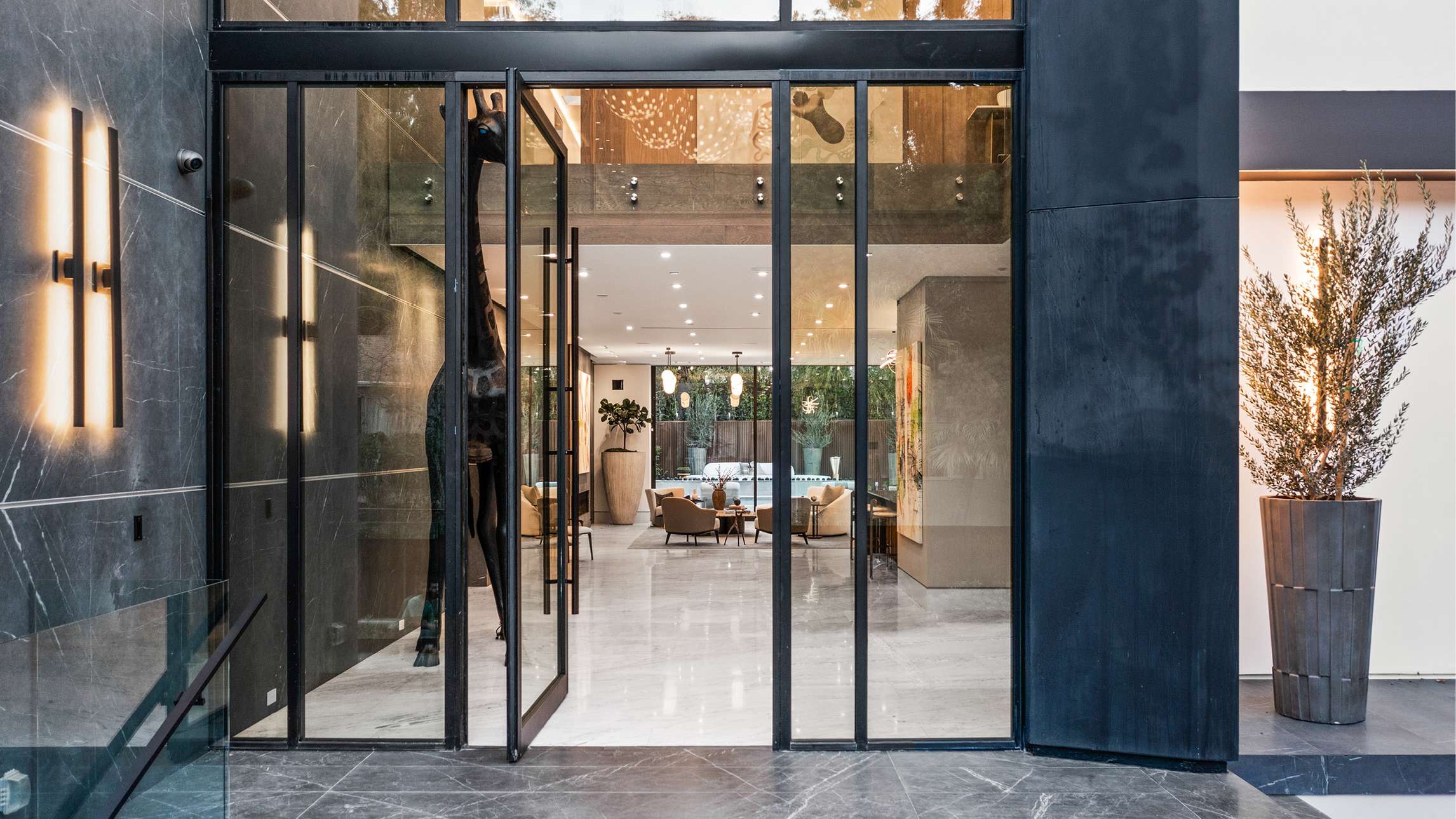

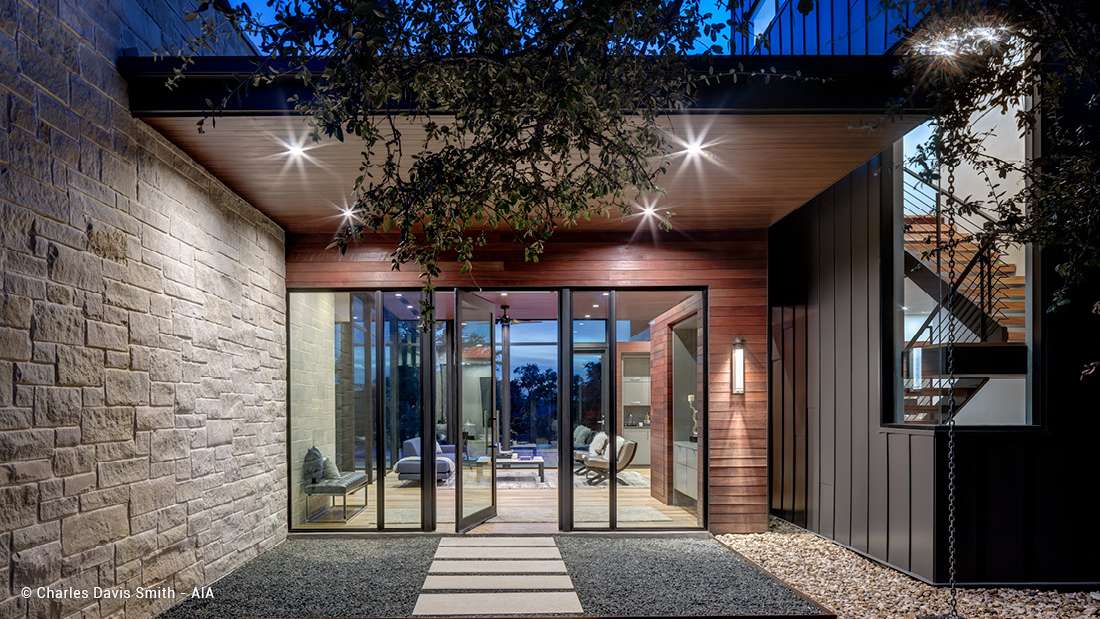

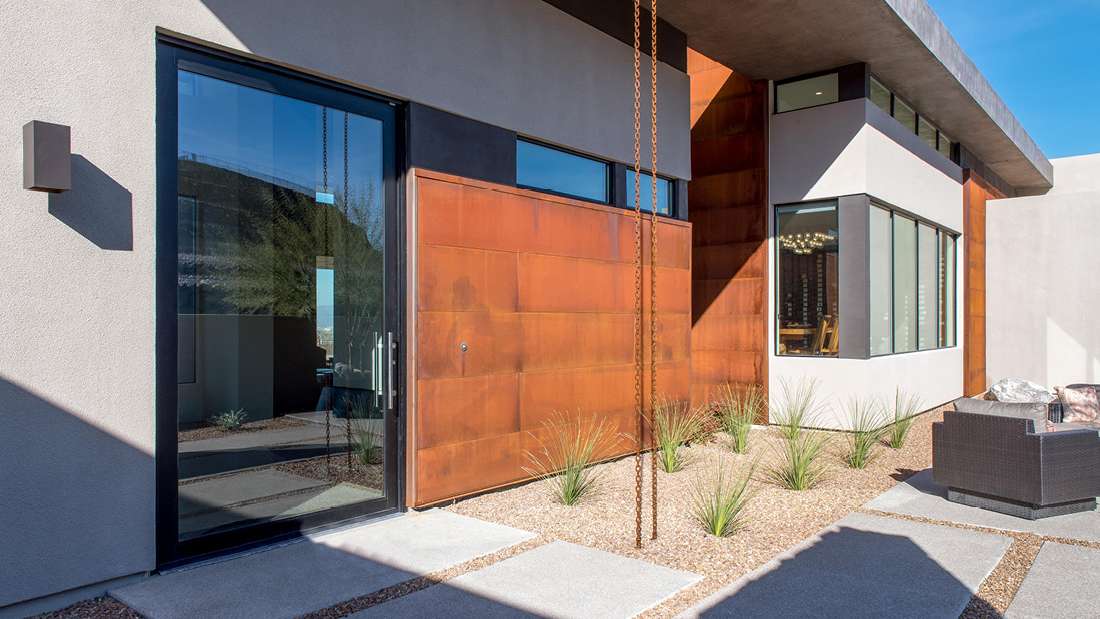

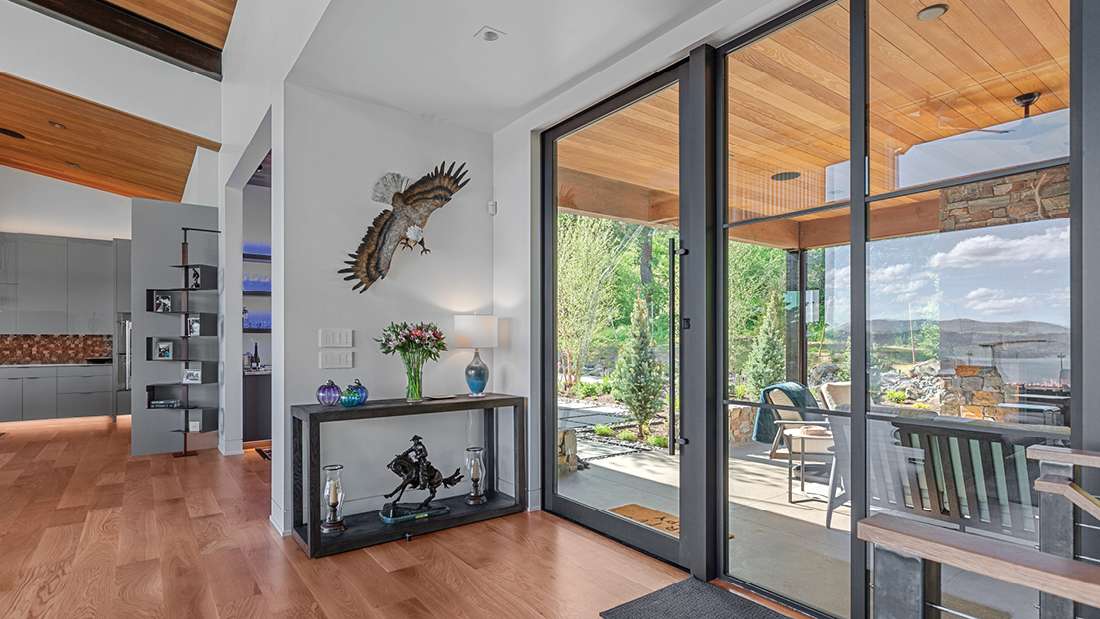

Blending artisan detail with scale and fortitude. With glass as your canvas, this door defines your entryway with timeless, natural style.
(4400-T & 4400-Wood)
(4400-T & 4400-Wood)
Rixson Floor Closer
Timeless Finishes. Cleaner Living. With proper maintenance, our anodized finishes and factory-baked paints last a lifetime, reducing chemical waste from refinishing. We also use processes that eliminate Volatile Organic Compounds that some products emit into the air. This ensures the healthiest home and supports our planet's environment.
Energy Rated:
The series 4400-T is one of the only energy rated pivot doors on the market.
Reduced Air/Insect Infiltration:
Most pivot doors bleed air, but the series 4400-T comes standard with engineered weather barriers and a concealed drop seal for the bottom rail that prevents most of the air infiltration and annoying insect entrances.
Glazing Options:
Fleetwood offers the series 4400-T in hundreds of glass choices, depending on the needs of the client. Whether the needs are security, more light, energy, sound control, tinting or custom glazing or panels, clients can choose from these thicknesses: 9/16”, 1”, 1 ¼ or 1 ½”.
STANDARD FEATURES | |
Finish | Anodized Black (Class 1) or Clear (Class 1) |
Glass | 1″ Insulated Glass with Dark Bronze Spacer |
Frame Components | 6063 T-6 Extruded Aluminum Strut Thermal Barriers |
Hardware | 4-1/2″ Deep Nail-On Frame Stainless Steel Assembly Screws Welded Butt Joined Corners with Bolster Key Weather Rated Finished Floor |

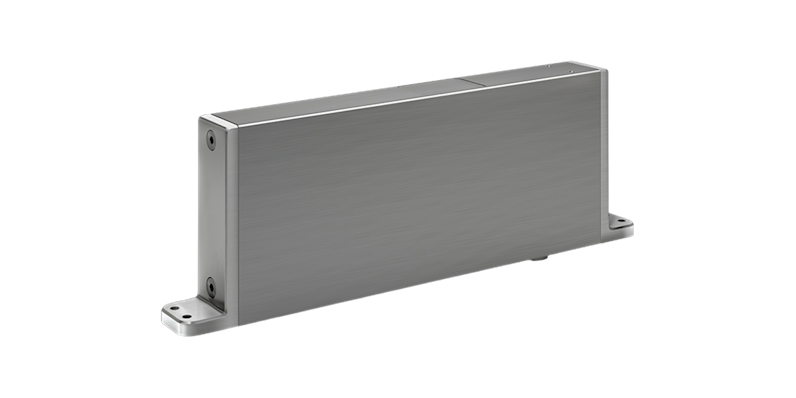

Configurations | Exterior Swing Jamb & Head Stops Concealed “In-Rail” Closer (FritsJurgens) Archetype Floor Pivot Archetype Locking Hardware No Pulls Exterior Keyed Lock |
OPTIONAL FEATURES | |
Finish | Kynar 70% Paint (50% for dark colors, ex. Black) Class 1 Custom Anodize (Light Bronze & Medium Bronze) |
Glazing | 9/16″, 1-1/4″ & 1-1/2″ |
Hardware | 4-1/2″ Deep Equal Leg (Block) Frame Mechanically Secured Corners (Shipped KD) Sub-Floor Floor Closer (Rixson) Archetype Low Profile Floor Pivot Steel Look SDL |
Configurations | Interior Swing Stainless Steel 2-Point Locking Hardware Archetype Actuator (no pulls) & Exterior Pull HOPPE Electronic Multi-Point Lock Custom FSB Levers |
CONFIGURATIONS | H, HH |
MAX. PANEL WIDTH & HEIGHT | |
Maximum Panel Weight | 1000 lbs. |
Maximum Panel Width | 160" |
Minimum Frame Height | 180" |
(Max width & height are not necessarily available in combination) | |
series 4400-T Pivot Door | Dual Glazing | Triple Glazing | |||||||
U-Value * | SHGC No Dividers | U-Value * | SHGC No Dividers | ||||||
Description/ Code | Air | Argon | Argon/ Warm Spacer | Air/ Argon | Air | Argon | Argon/ Warm Spacer | Air/ Argon | |
Cardinal 366 6mm | - | .43 | - | /.19 | - | - | - | - | |
Cardinal 366/i89 6mm | .41 | .39 | - | .18/.18 | - | - | - | - | |
Cardinal 272 6mm | - | .43 | - | /.27 | - | - | - | - | |
Cardinal 272/i89 6mm | - | .39 | - | /.26 | - | - | - | - | |
Guardian SN68 6mm | .47 | .45 | .43 | .25/.25 | .40 | .38 | - | .22/.22 | |
Guardian SNX62 6mm | .47 | .44 | .43 | .18/.18 | .40 | .37 | - | .16/.16 | |
Guardian SNX62/IS20 6mm | - | - | .40 | /.18 | - | - | .34 | /.14 | |
Simulated Performance Alternative Reports are available upon request.
Spacers
Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.
This door was designed for a luxury residence, which seldom requests sound test data. For comparative analysis only, we provide a series 3200-T report.
AAMA/WDMA/NAMI/HVHZ/ASTM
All testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.
*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.
Current Test Reports:
