Sleek security meets seamless design with luxury handles, integrated combinations, and unique customization like keyless entry and hopper window inserts.
FSB Lever #1076

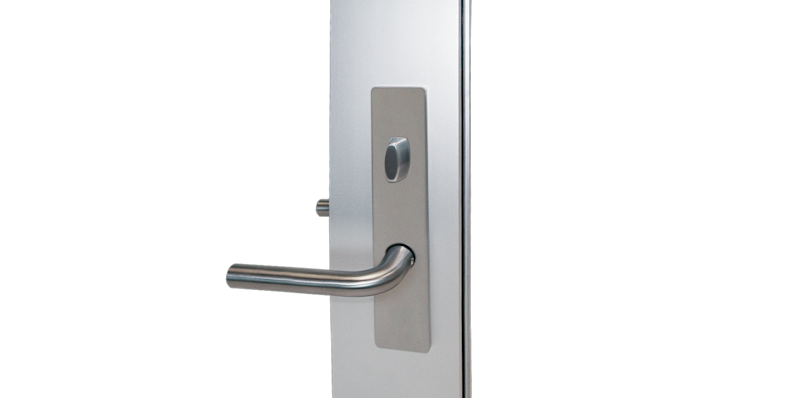

FSB Lever #1075

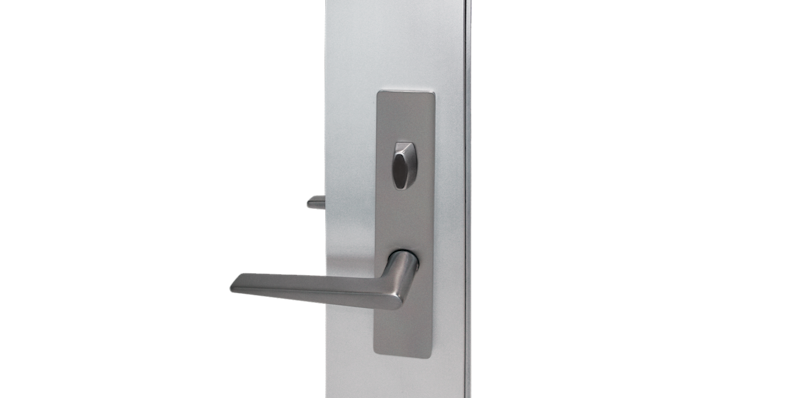

FSB Lever #1005
Aluminum Finished to Match
Timeless Finishes. Cleaner Living. With proper maintenance, our anodized finishes and factory-baked paints last a lifetime, reducing chemical waste from refinishing. We also use processes that eliminate Volatile Organic Compounds that some products emit into the air. This ensures the healthiest home and supports our planet's environment.
High Efficiency Glass: Modern glazing from Fleetwood coupled with increasingly efficient insulation techniques allows a minimalist design with huge glass that does not compromise energy consumption.
Options: Fleetwood offers hundreds of modern glass options. Hinged door products are designed to accept high-performance, 1” or 1-1/2” insulated glass.
Thermal Break Technology: Fleetwood products with a “T” in the series number are manufactured with thermally broken aluminum for condensation control and energy efficiency. For over 30 years, Fleetwood has designed products around this now sweeping practice and does so with extensive testing and engineering so the product maintains the look for the ultimate minimalist.
Standard Features | |
|---|---|
Finish | Stock Anodized Finish: Black (class 1) or Clear (class 1) |
Glass | 1″ Insulated Glass with Dark Bronze Spacer |
Frame | 6063 T-6 Extruded Aluminum 4-1/2″ Deep Nail-on Frame |
Thermal Barrier | Strut Thermal Barriers |
Swing Type | Exterior |

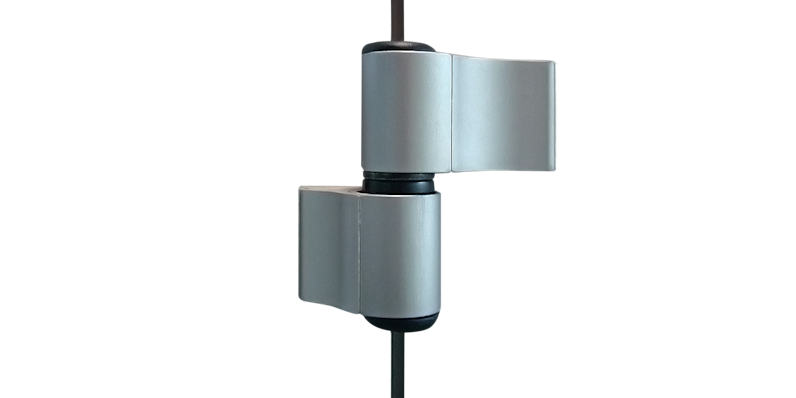

Hardware | Stainless Steel Assembly Screws Welded Butt Joined Corners with Bolster Key 1-1/2″ Height Threshold Savio Adjustable Hinges (4) TRUTH Stainless Steel 5-Point Multi-point Locking Hardware |
Accessories | Aluminum Sill Pan (Non-Thermal) FSB Stainless Steel Escutcheon Plate and Lever Lever Height 37-1/4″ Exterior Snap-in Glazing (Square Profile) Exterior Keyed Lock |
OPTIONAL FEATURES | |
Finish | Kynar 70% Paint (50% for dark colors, ex. Black) class 1 Custom Anodize (Light Bronze & Medium Bronze) |
Glazing | 9/16″, 1-1/4″, 1-1/2″ |
Frame | 4-1/2″ Deep Equal Leg (Block) Frame |
Swing Type | Interior Swing (Minimal Weather Performance) |
Hardware | Mechanically Secured Corners (Shipped KD) 1/2″ Height Threshold (Minimal Weather Performance) 3-Point Electronic Multi-Point Locking Hardware Custom FSB Levers |
Accessories | Side Lites & Transoms Steel Look SDL |
CONFIGURATIONS | H, HH, OH, OHO, O/H |
MAX. PANEL WIDTH & HEIGHT | |
Maximum Panel Width | 55.875″ |
Maximum Frame Height | 144″ |
Series 3900-T Hinge Door | Dual Glazing | Triple Glazing | |||||||
U-Value | SHGC No Dividers | U-Value | SHGC No Dividers | ||||||
Description/ Code | Air | Argon | Argon & Warm Spacer | Air/ Argon | Air | Argon | Argon & Warm Spacer | Air/ Argon | |
Cardinal 366 6mm | - | .44 | - | /.17 | - | - | - | - | |
Cardinal 366/ i89 6mm | - | .41 | - | .17/.17 | - | - | - | - | |
Cardinal 272 6mm | - | .45 | - | /.25 | - | - | - | - | |
Cardinal 272/ i89 6mm | - | .42 | - | /.24 | - | - | - | - | |
Guardian SN68 6mm | .49 | .46 | .45 | .23/.23 | .43 | .41 | - | .20/.20 | |
Guardian SNX62 6mm | .48 | .46 | .45 | .17/.17 | .43 | .40 | - | .15/.15 | |
Guardian SNX62/ IS20 6mm | - | - | .42 | /.16 | - | - | .38 | /.13 | |
Simulated Performance Alternative Reports are available upon request.
Spacers
Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.
This door was designed for a luxury residence, which seldom requests sound test data. For comparative analysis only, we provide a Series 3200-T report.
AAMA/WDMA/NAMI/HVHZ/ASTM
All testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.
*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.
Current Test Reports:
