Series 4400-Wood
Crafted solely from real wood panels, never imitations or veneers, this sister product is built for a clientele that accepts nothing less than the ultimate in authenticity, security, and privacy. Available in over 50 custom variations, seven rich wood species, and eight modern designs.
Photo Gallery
Product Highlights
- Key Features
- Proprietary Hardware
- Design & Wood Options
- Energy, Noise & Security
key features
key features
- Patented Archetype locking system pairs with any architectural pull for a sophisticated finish.
- Optional multi-point locking systems, for additional security, are manually or electronically controlled, paired with luxury FSB handles.
- Arche-Duct flush sill ensures discreet transitions with reliable residential water performance.
proprietary Hardware
proprietary Hardware
FritsJurgens In-Rail Closer
(4400-T & 4400-Wood)

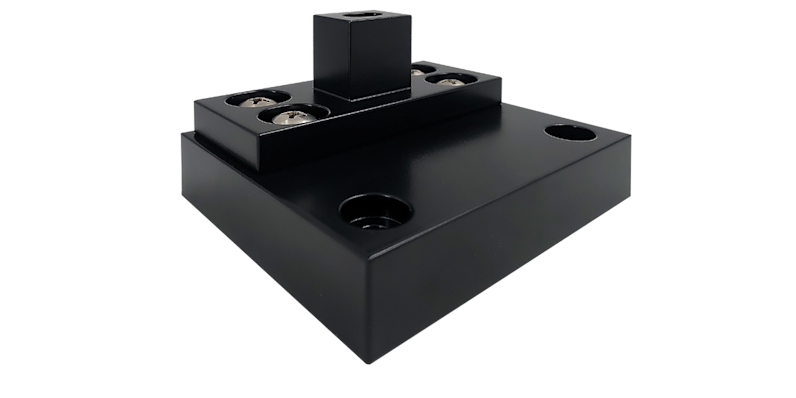

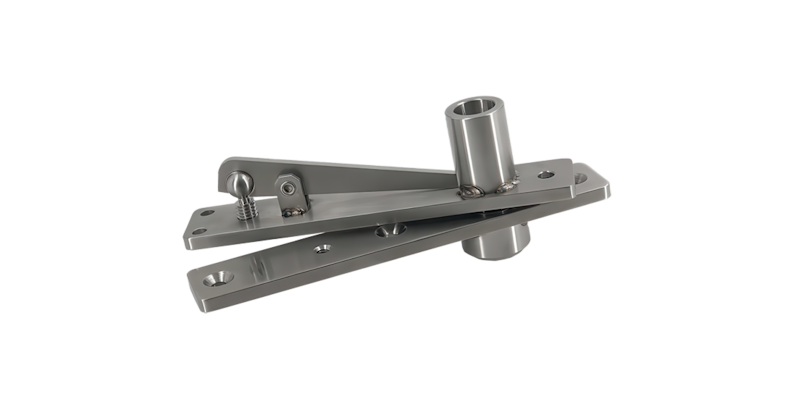

Archetype Floor Pivot
(4400-T & 4400-Wood)

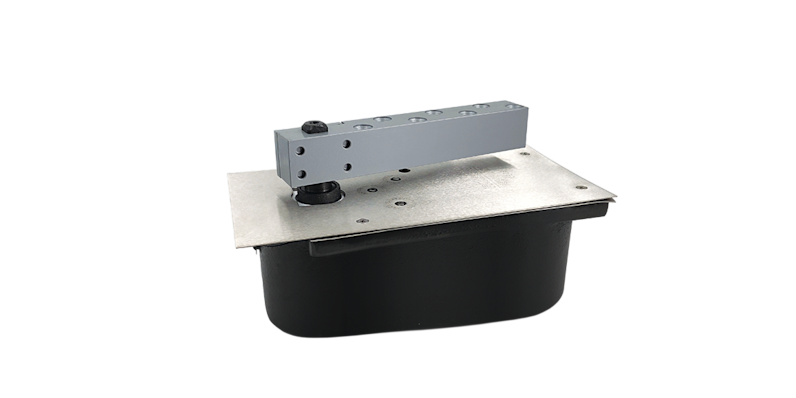

Rixson Floor Closer
(4400-T & 4400-Wood)

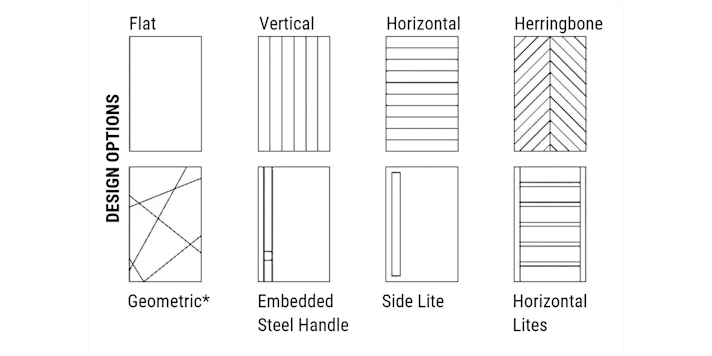

Design Options
The 4400 Wood Pivot supports biophilic design and sustainability principles, offering a seamless connection between the natural world and refined interiors.
Wood Species Options
Wood is one of the world’s most versatile and sustainable building materials—naturally storing carbon dioxide and helping offset emissions throughout its lifecycle. Our wood varieties pair effortlessly with Fleetwood’s sustainable aluminum systems, made from 100% recyclable material. Complete your vision with our earth-toned anodized finishes and factory-baked paints, engineered to reduce chemical waste and eliminate airborne toxins for a healthier home and planet.
Energy, Noise & Security
Energy, Noise & Security
Residential Design: In the pivot door world, only the 4400 Wood was designed for elite luxury residential applications. Competing products offer modified commercial doors or panels with glued on finishes that pale when comparing fit & finish.
Hidden Weather-Stripping: During design, apt attention was given to hiding the needed weather-stripping as much as possible. The intention was for customers to only see finishes and hardware while in a closed position.
Product Specifications
Standard Features | |
|---|---|
Finish | Stock Anodized Finish: Black (Class 1) or Clear (Class 1) |
Frame | Aluminum Perimeter Frame 6063 T-6 Extruded Aluminum |
Swing Type | Exterior Swing |
Hardware | 4-1/2″ Deep Nail-On Frame Stainless Steel Assembly Screws Jamb Stops Concealed “In-Rail” Closer (FritsJurgens) Archetype Floor Pivot Archetype Locking Hardware |
Accessories | No Pulls Exterior Keyed Lock |
OPTIONAL FEATURES | |
Finish | Aluminum Finish:
|
Frame | 4-1/2″ Deep Equal Leg (Block) Frame |
Swing Type | Interior Swing |
Hardware | 4-1/2″ Deep Equal Leg (Block) Frame Sub-Floor Floor Closer (Rixson) Archetype Low Profile Floor Pivot TRUTH stainless steel 5-point multi-point locking hardware |
Accessories | HOPPE Electronic Multi-Point Lock Custom FSB Levers |
CONFIGURATIONS | H |
MAX. PANEL WIDTH & HEIGHT | |
Maximum Panel Weight | 1000 lbs. |
Maximum Panel Width | 96″ |
Maximum Frame Height | 144″ |
(Max width & height are not necessarily available in combination) | |
