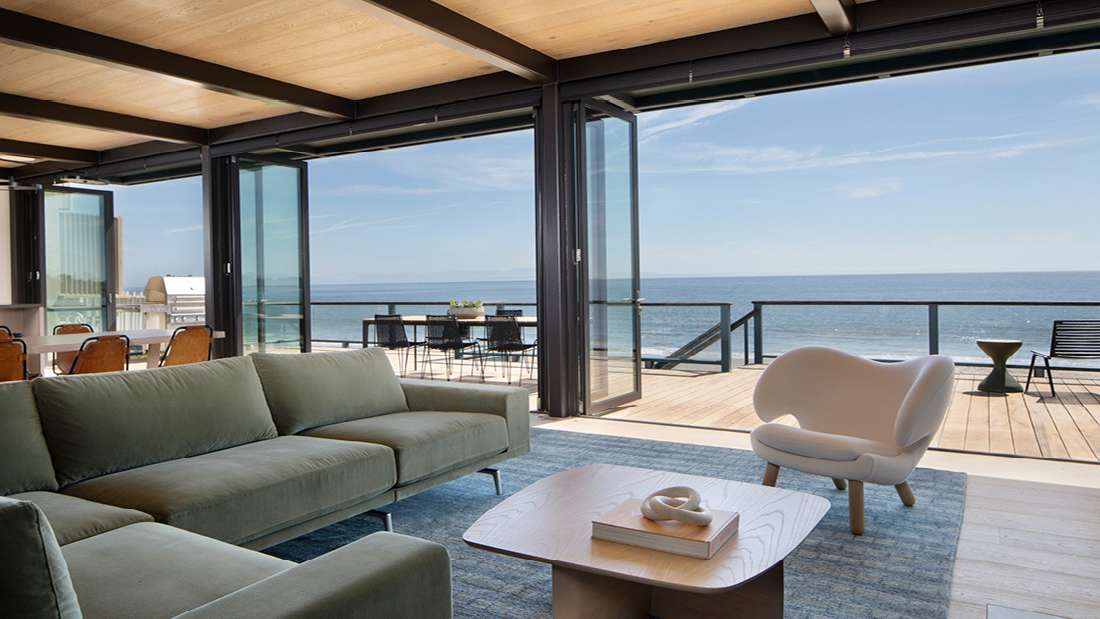

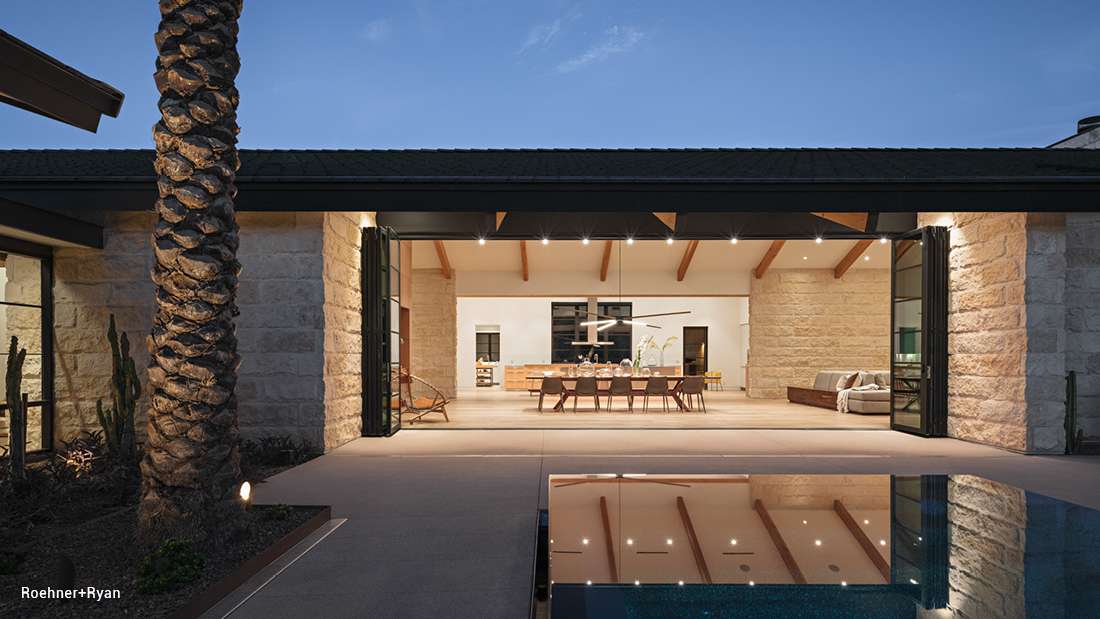

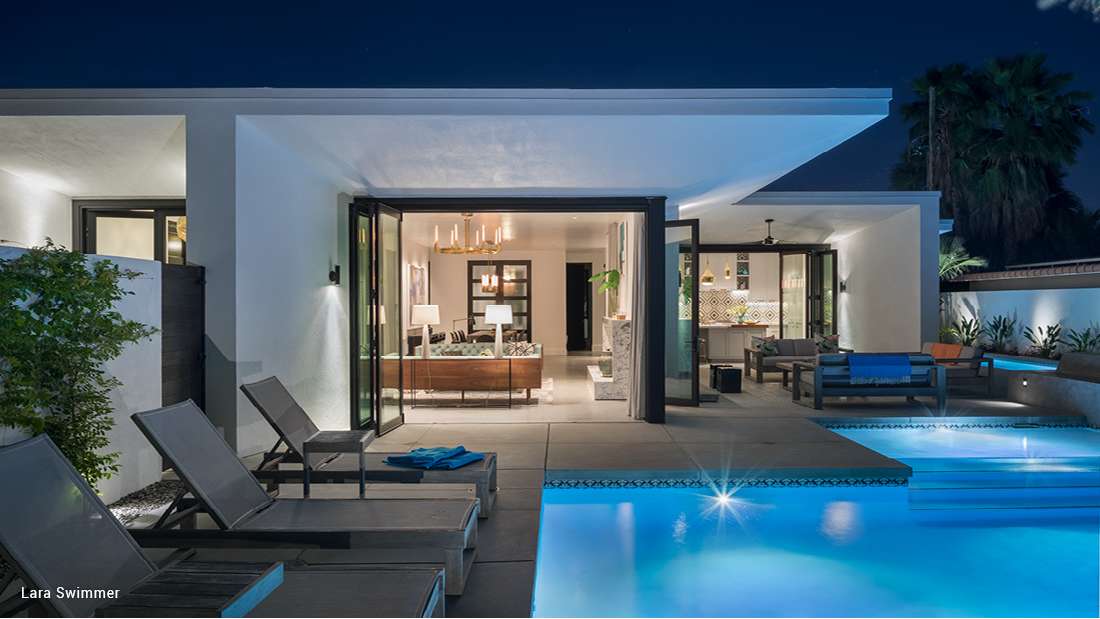

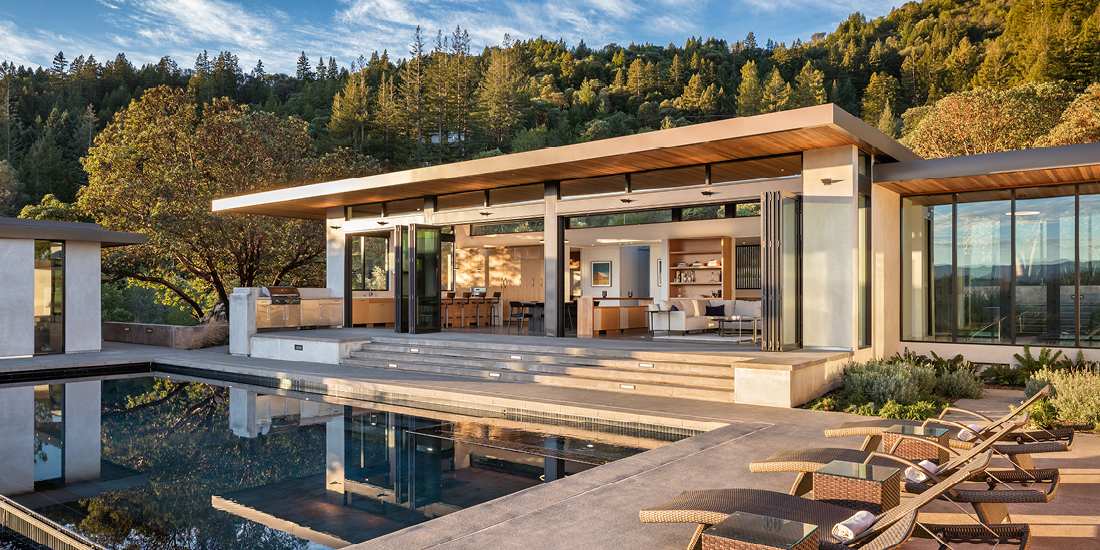

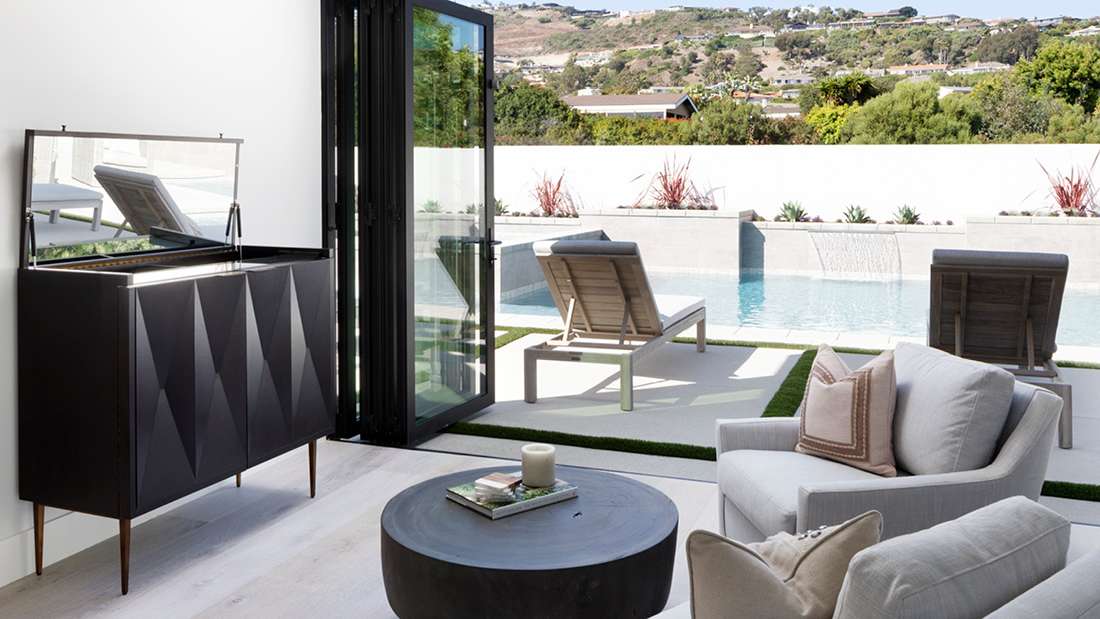

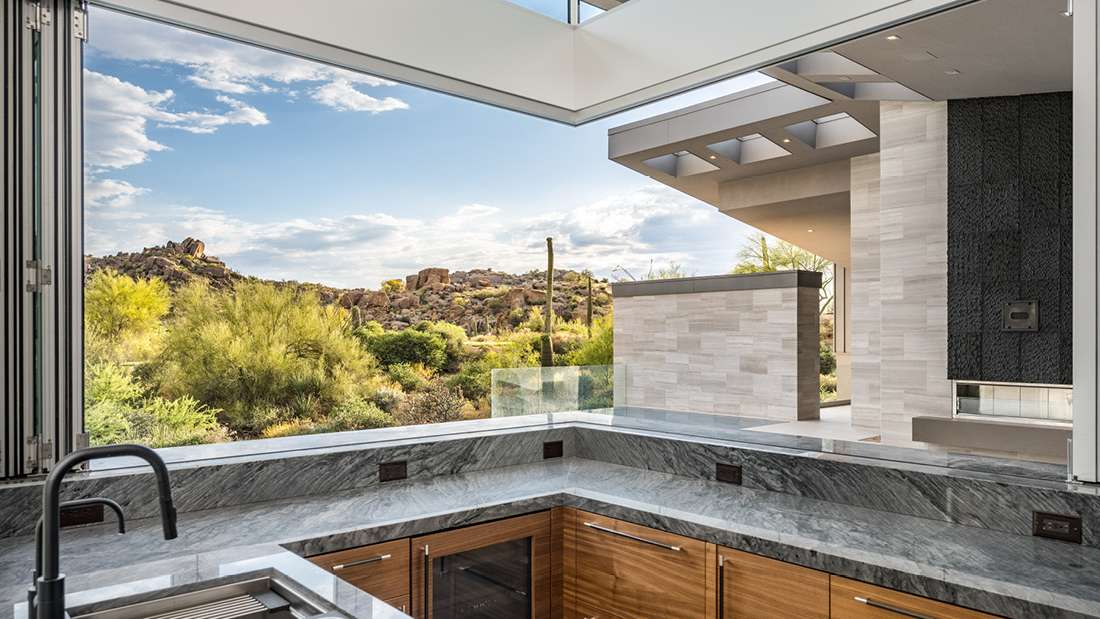

Engineered for coastal durability and high-wind environments, the 3600-T folding system can be tailored to include options like integrated swing doors and no-post corners.

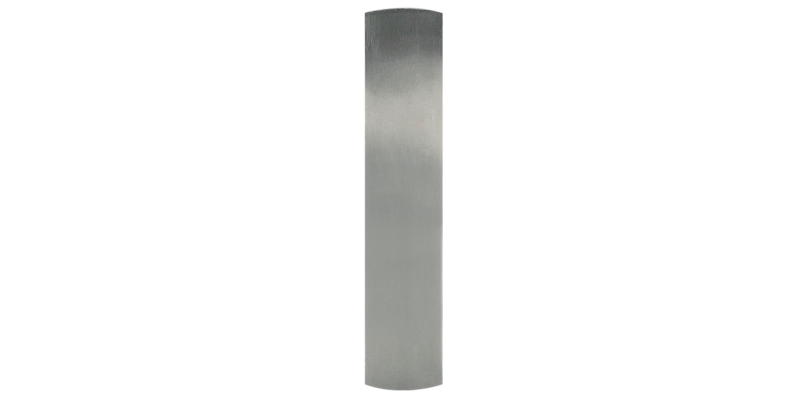

DPL Handle

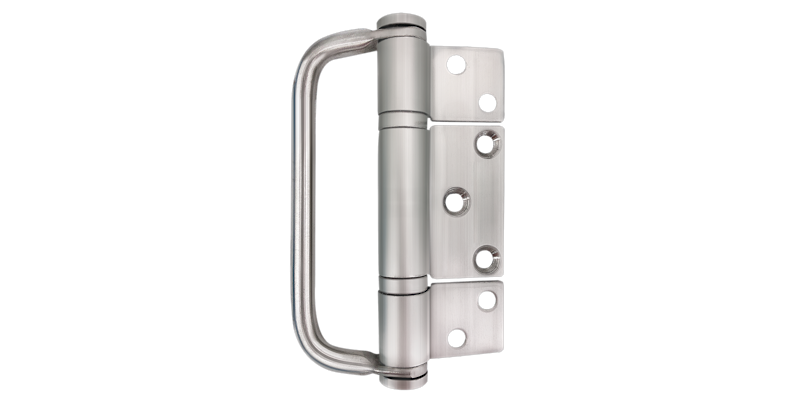

Hinge Handle

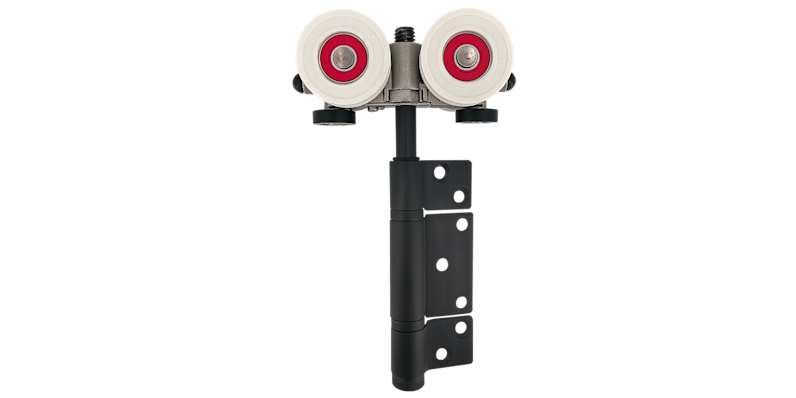

Intermediate Carrier

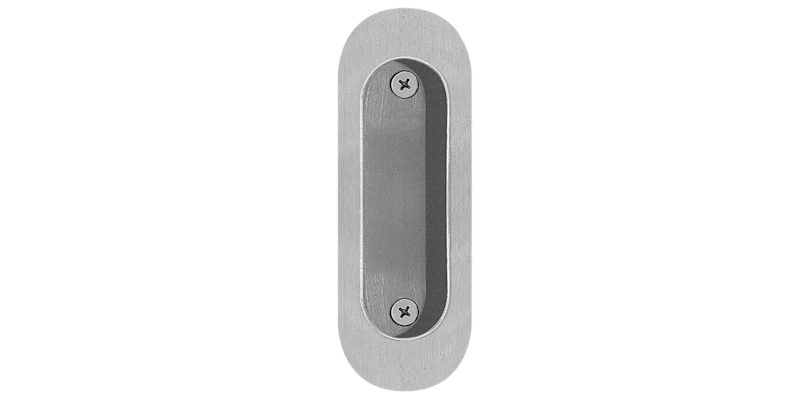

Flush Pull

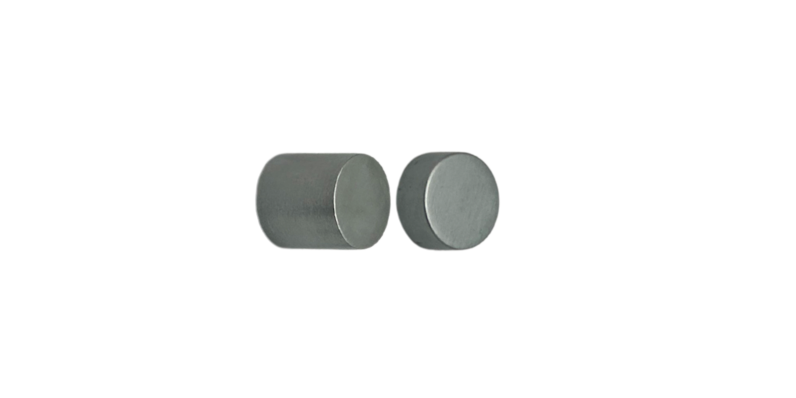

Magnetic Door Catches
Timeless Finishes. Cleaner Living. With proper maintenance, our anodized finishes and factory-baked paints last a lifetime, reducing chemical waste from refinishing. We also use processes that eliminate Volatile Organic Compounds that some products emit into the air. This ensures the healthiest home and supports our planet's environment.
High Efficiency Glass: Modern glazing from Fleetwood coupled with increasingly efficient insulation techniques allows a minimalist design with huge glass that does not compromise energy consumption.
Thermal Break Technology: Fleetwood products with a “T” in the series number are manufactured with thermally broken aluminum for condensation control and energy efficiency. For over 30 years, Fleetwood has designed products around this now sweeping practice and does so with extensive testing and engineering so the product maintains the look for the ultimate minimalist.
Security Benefits: Fleetwood endeavors to make products better instead of cheaper, resulting in specialty products that other manufacturers should not attempt. High-security laminated glass (like your car windshield) coupled with robust Fleetwood framing can withstand severe impact.
Fire/Heat Resistance: Steel products are designed and rated to resist fire damage, but these products are limited in function and can be costly. While not fire rated, Fleetwood aluminum products offer great performance and style and actually help maintain wall integrity during a fire. Typical residential windows (wood or vinyl) add to the flame whereas extruded aluminum retains its form at over 1000 °F.
Standard Features | |
|---|---|
Finish | class I Clear Anodize class I Black Anodize |
Glass | 1″ Clear IG Bronze IG Spacer |
Hardware | Stainless Steel DPL (Dual Point Locks): Swing Door Handles Keyed Externally @ 36″ Non-locking Dual Point Locks (DPL) Stainless Steel Hinges, Carriers & Visible Hardware: 4-1/2″ Nail-On Frame 1-7/8″ Threshold Outside Folding/Swing |
Materials/ Construction | 6063-T6 Thermally Broken Aluminum Polymide Struts Butt Joined Panels Using Mechanical Corner Block |
OPTIONAL FEATURES | |
Finish | Kynar 70% Paint (50% for dark colors, ex. Black) class 1 Custom Anodize (Light Bronze & Medium Bronze) |
Hardware | Steel Look SDL Black PVB Stainless Steel Visible Hardware |
Materials/ Construction | 4-1/2″ Block Frame Flush Sill Guide (Not Weather Tested) Inswing Folding/Swing Swing Door Hold Magnet (Available Only w/DPL & Not FSB Handle) |
CONFIGURATIONS | Typical Configurations (PDF) |
MAX. PANEL WIDTH & HEIGHT | |
Maximum Panel Weight | |
Maximum Panel Width | 42″ |
Maximum Frame Height | 144″ |
(Max width & height are not necessarily available in combination) | |
Series 3600-T Folding Door | Dual Glazing | Triple Glazing | |||||||
U-Value | SHGC No Dividers | U-Value | SHGC No Dividers | ||||||
Description/ Code | Air | Argon | Argon & Warm Spacer | Air/ Argon | Air | Argon | Argon & Warm Spacer | Air/ Argon | |
Cardinal 366 6mm | - | .38 | - | /.21 | - | - | - | - | |
Cardinal 366/ i89 6mm | .36 | .34 | .35 | .20/.20 | - | - | - | - | |
Cardinal 272 6mm | - | .38 | - | /.30 | - | - | - | - | |
Cardinal 272/ i89 6mm | - | .34 | - | /.29 | - | - | - | - | |
Guardian SN68 6mm | .43 | .40 | .38 | .28/.28 | .39 | .36 | - | .26/.26 | |
Guardian SNX62 6mm | .41 | .38 | .38 | .20/.20 | .39 | .36 | - | .19/.18 | |
Guardian SNX62/ IS20 6mm | - | - | .30 | /.19 | - | - | .32 | /.18 | |
Simulated Performance Alternative Reports are available upon request.
Spacers
Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.
AAMA/WDMA/NAMI/HVHZ/ASTM
All testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.
*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.
Current Test Reports:
